Acros IS41 / IS41 Head Bearing Set A02

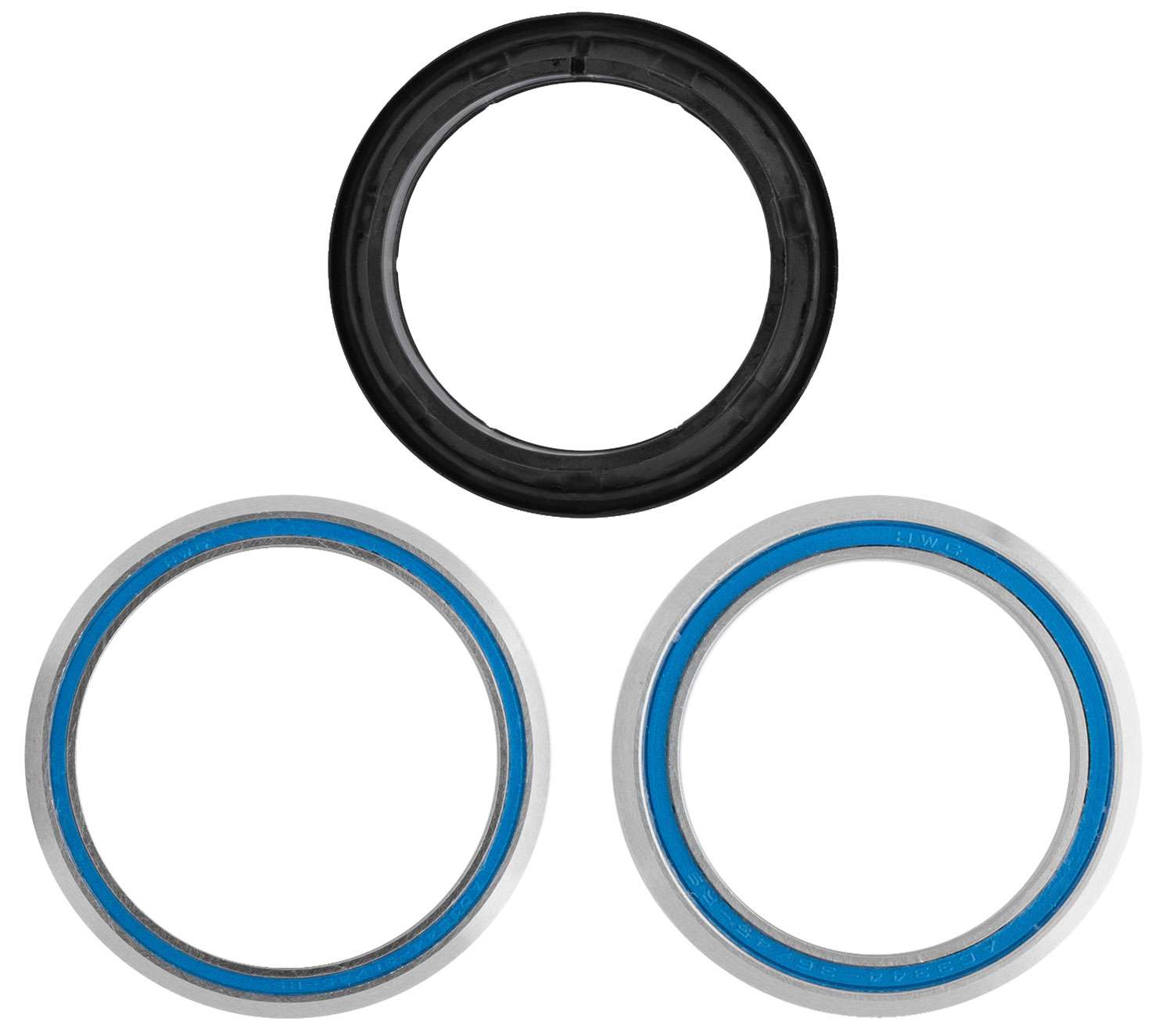

ACROS replacement bearing set with dimensions 41x30.1x6.5-36°/45° and 41x30.1x6.5-45°/45° for fully integrated (is) headsets. The is41/is41 bearing set consists of one stainless steel angular contact ball bearing each for frames with 41mm top and 41mm bottom in the head tube and a matching centring ring with vulcanized seal for optimum protection of the headset bearing against moisture and dirt.

High-quality ball bearings for your bike: ACROS IS41/IS41 A02 head bearing set

As a subsidiary of a renowned bearing manufacturer, Acros was born with a passion for bearings. That's why Acros develops headsets and bottom brackets for a carefree time on the bike. The mission is simple: ride more, worry less - regardless of the weather and whether you're on the mountain passes, gravel roads or trails of this world.
Headsets are inconspicuous, but indispensable. Above all, however, a headset is more complex than it seems at first glance. The two sealing washers with double lip seal keep the grease securely inside the industrial ball bearing and prevent moisture and dirt from penetrating the bearing. Acros thus offers you long-lasting function, no matter what.

---

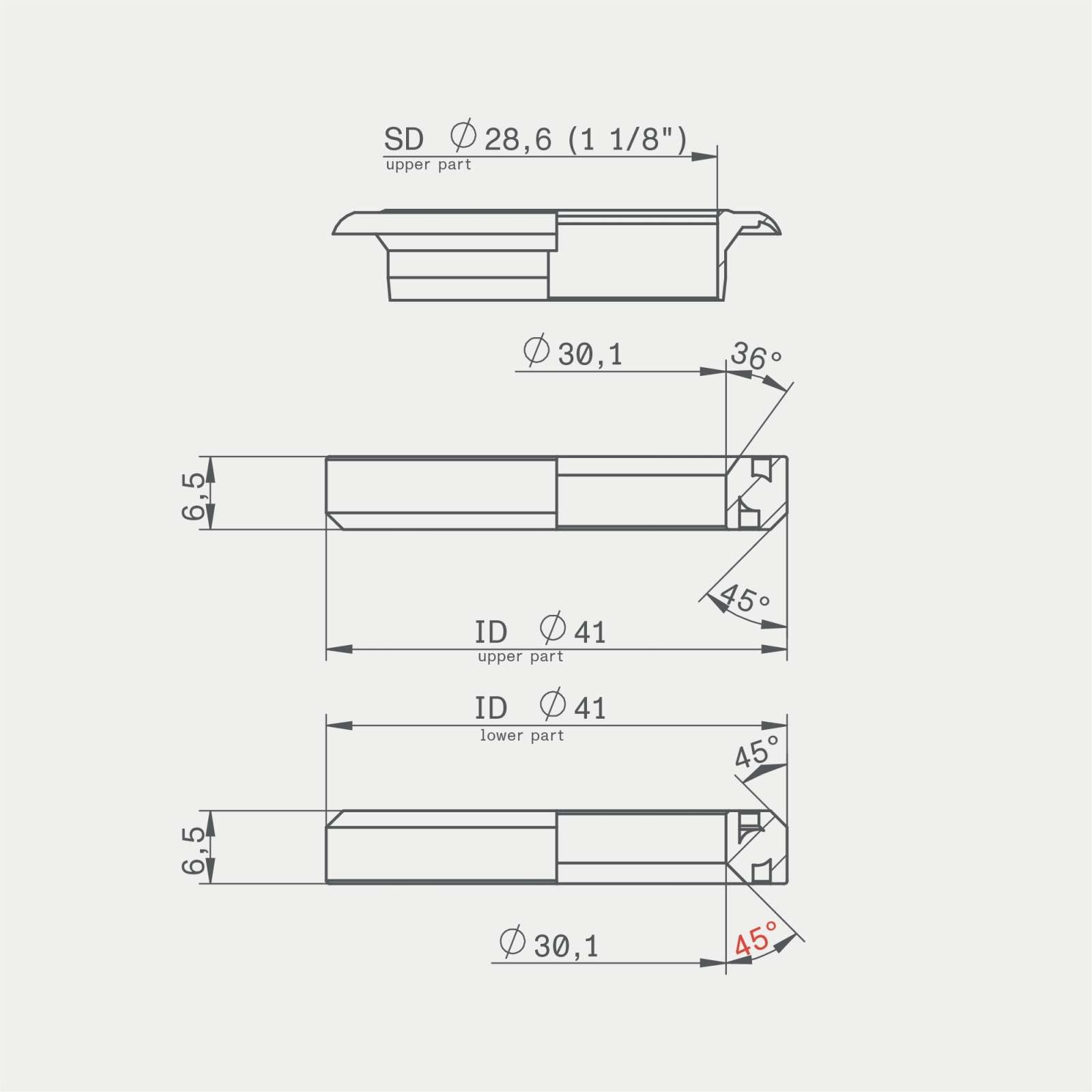

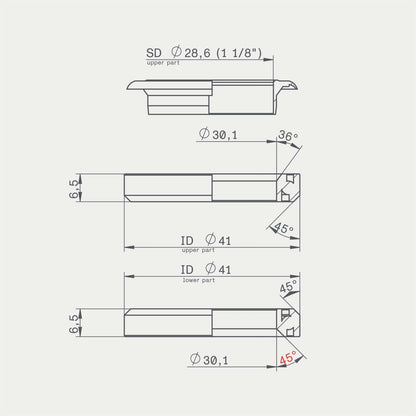

Product features - ACROS IS41 / IS41 (41x30.1x6.5-36°/45° - 41x30.1x6.5-45°/45°) | A02

• Model: Bearing set
• Type: Integrated (IS)
• Head tube: IS41 / IS41
• Steerer tube: 1 1/8"
• Bearing: Double-sealed angular contact ball bearing
• Upper:
  • IS41
  • Outer diameter: 41mm
  • Inner diameter: 30.1mm
  • Height: 6.5mm
  • 36°/45°
• Lower:
  • IS41
  • Outer diameter: 41mm
  • Inner diameter: 30.1mm
  • Height: 6.5mm
  • 45°/45°

Material

• Ball bearing: Stainless steel
• Centring ring: Glass fibre reinforced plastic with vulcanized seal

---

Scope of delivery

• 1 x Acros IS41 / IS41 Head Bearing Set A02
