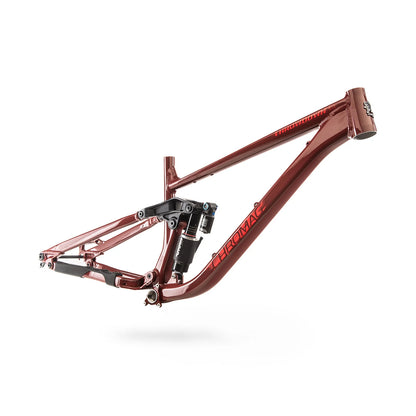

Chromag Throwdown

Chromag Throwdown

$4,600.00
$4,600.00
Sale Out Of Stock Currently
Colour
Size
Build

We made the Throwdown to support those who can’t get enough gravity, intended to be charged hard day after day. The Throwdown is the natural progression for a ripper grom from a Minor Threat or someone after a one bike quiver that loves a shuttle, a lift bump or even likes to earn their turns the hard way.

☛ Long and slack geometry with upright riding position for sure footed versatility in demanding terrain.
☛ 170mm rear suspension paired with 170mm fork.
☛ Mullet wheel only.

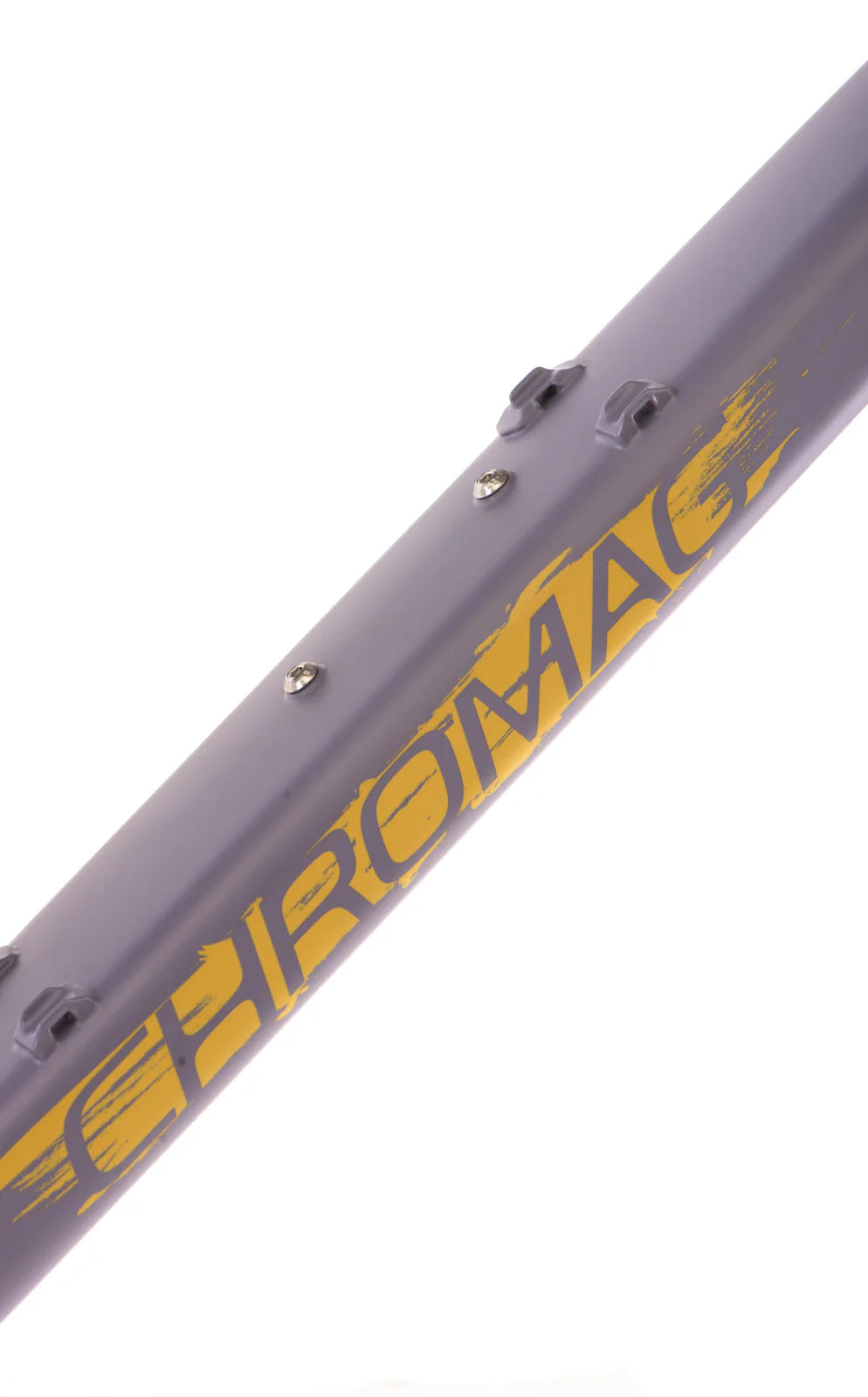

☛ 6066 T-6 Alloy tubing.
☛ Robust precision hardware and bearings at all pivot points.
☛ Tough, reliable & easy to maintain.

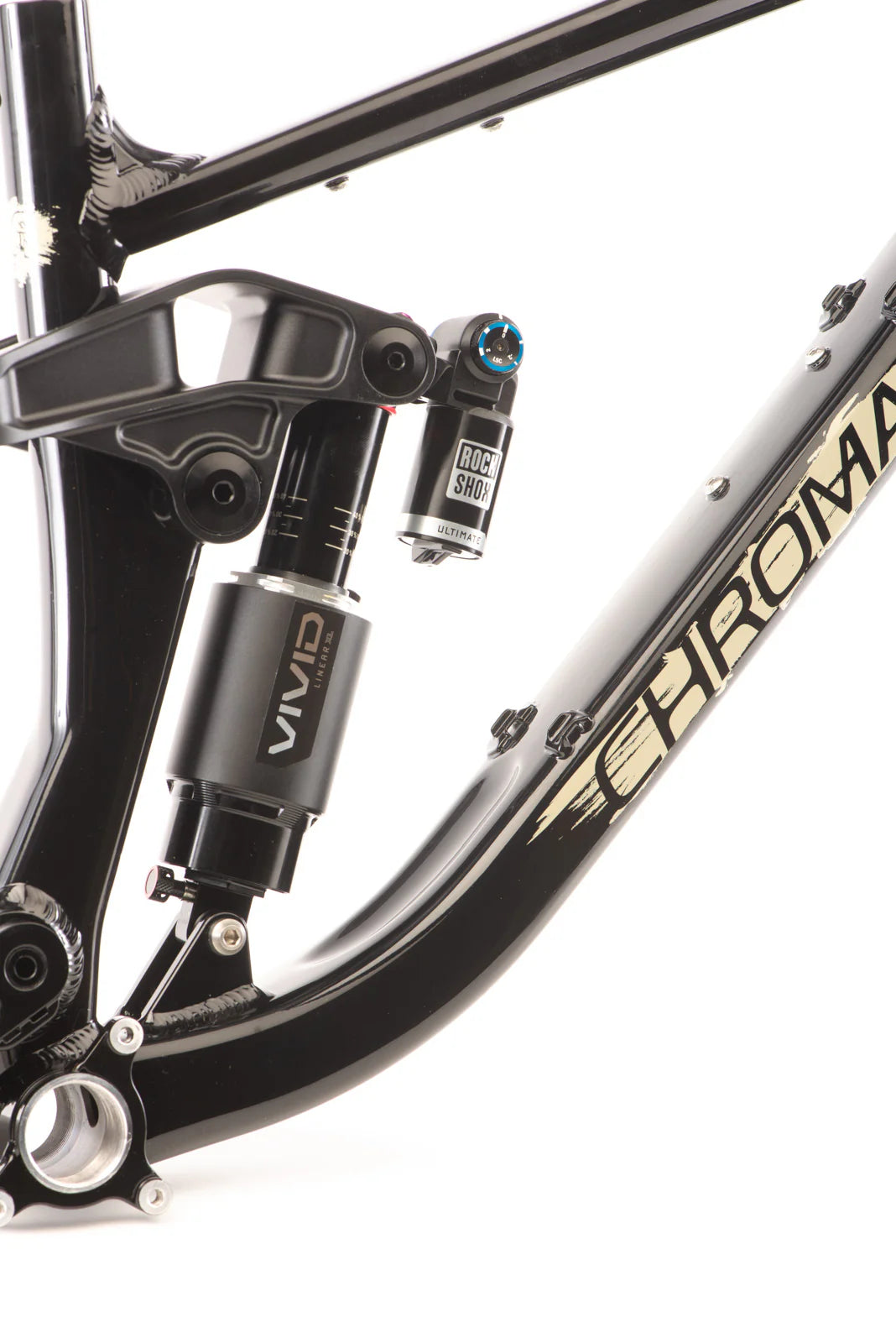

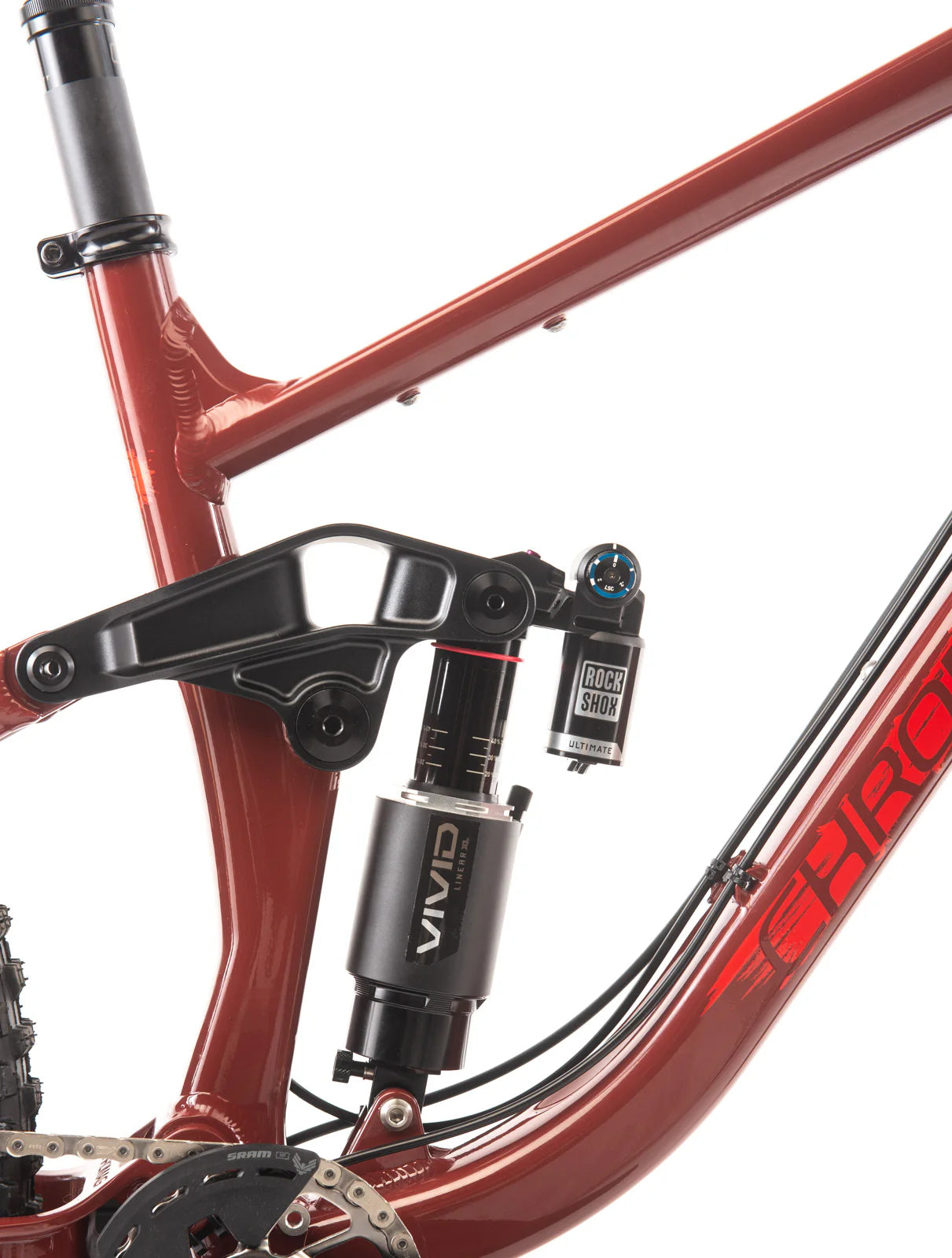

☛ Rockshox Vivid Ultimate rear shock.

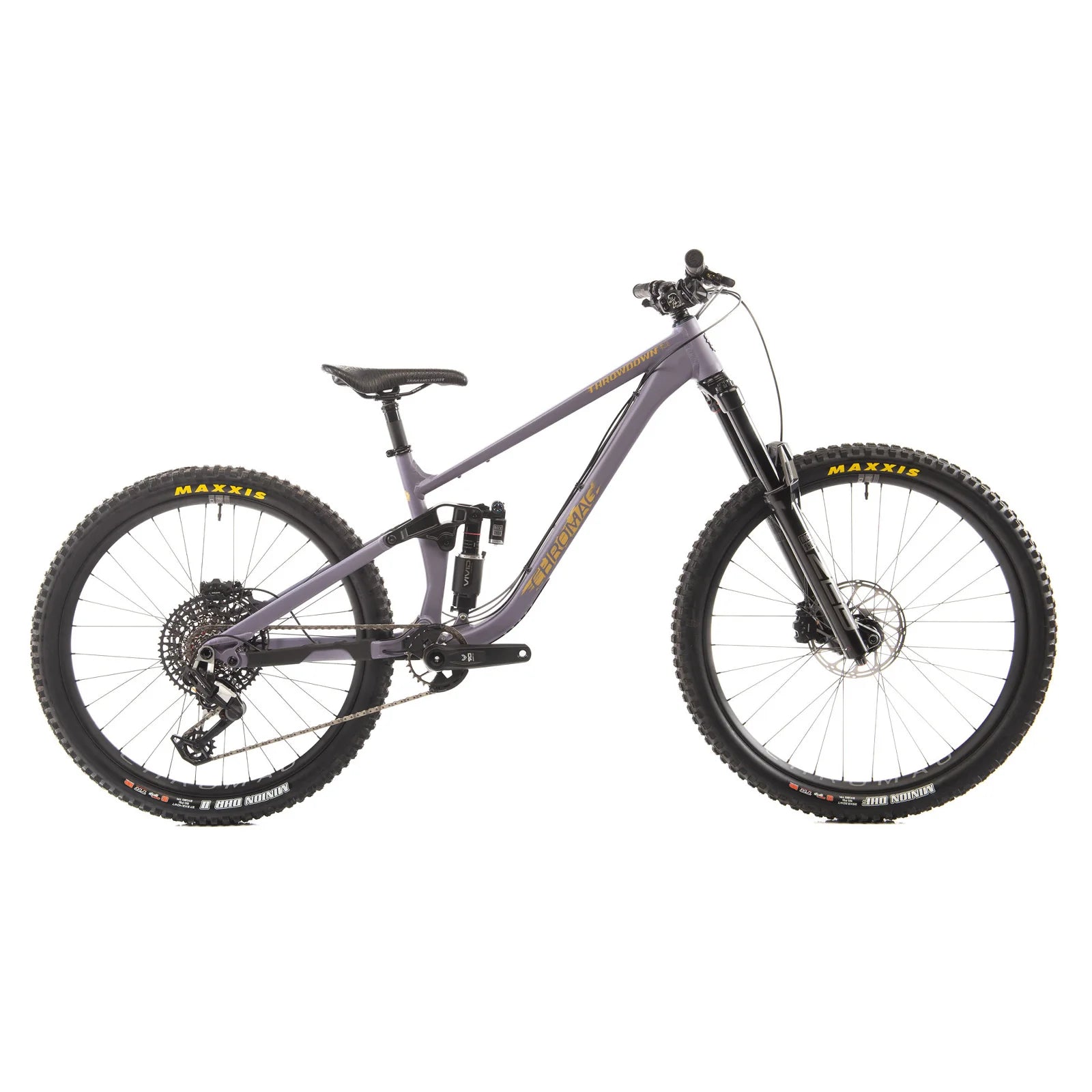

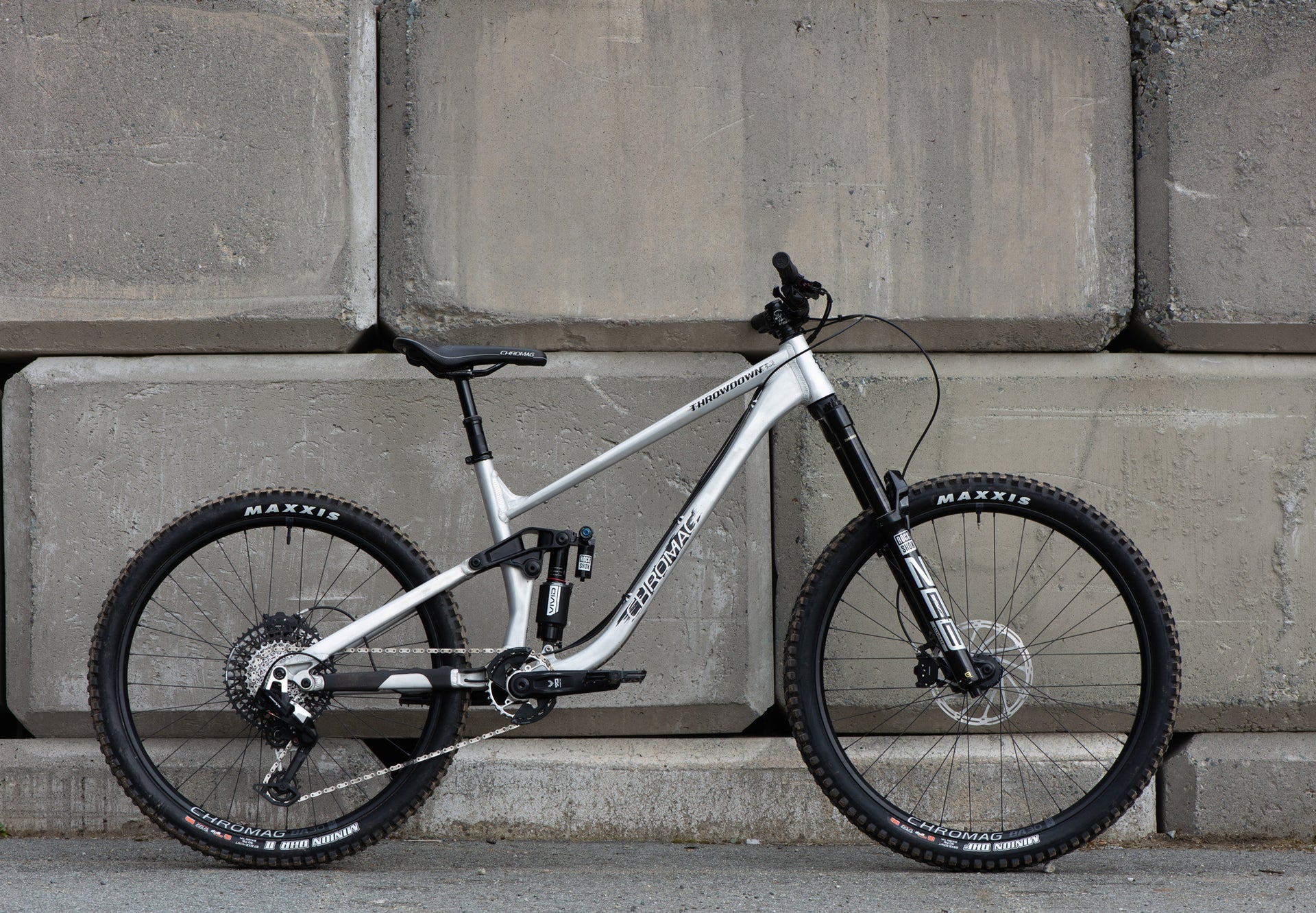

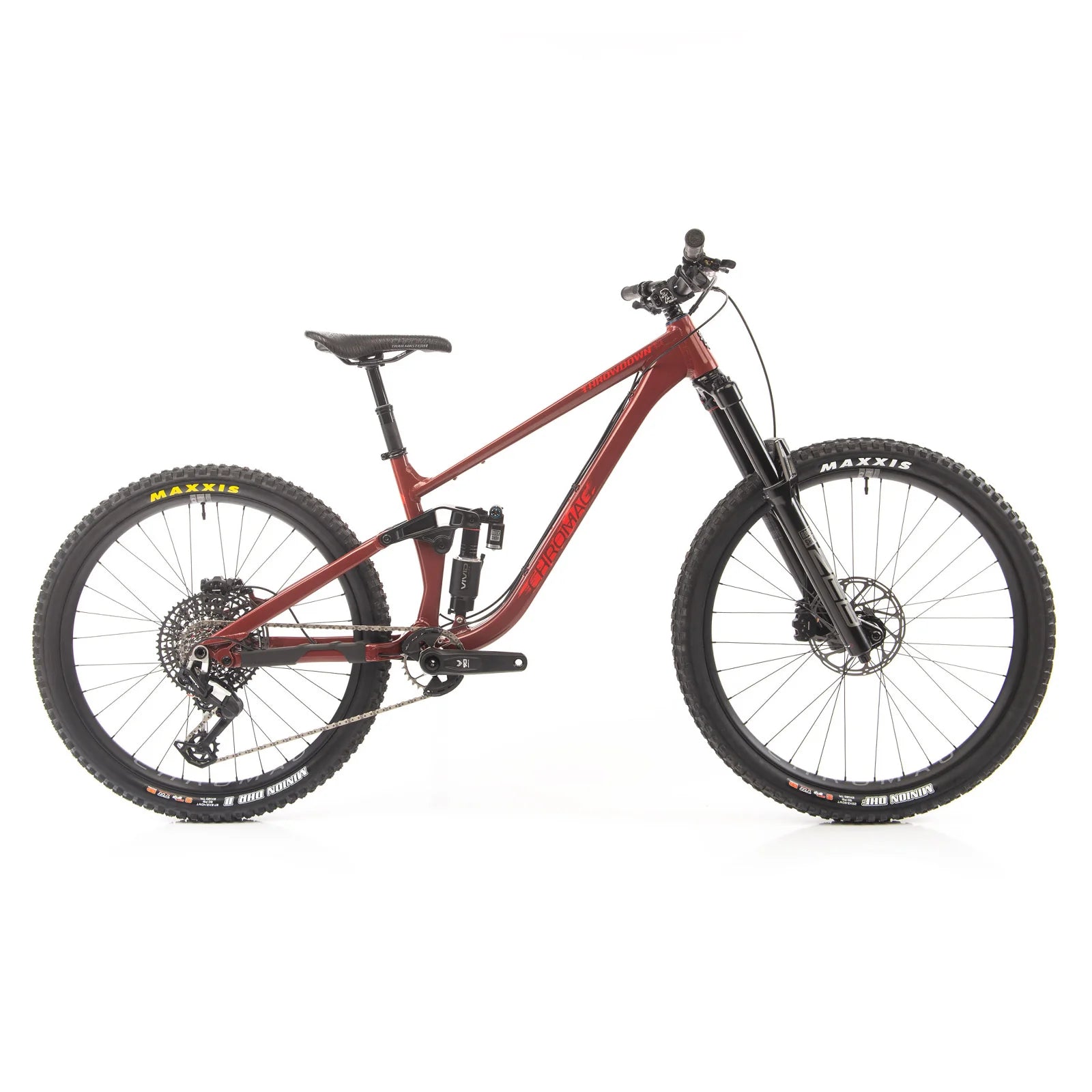

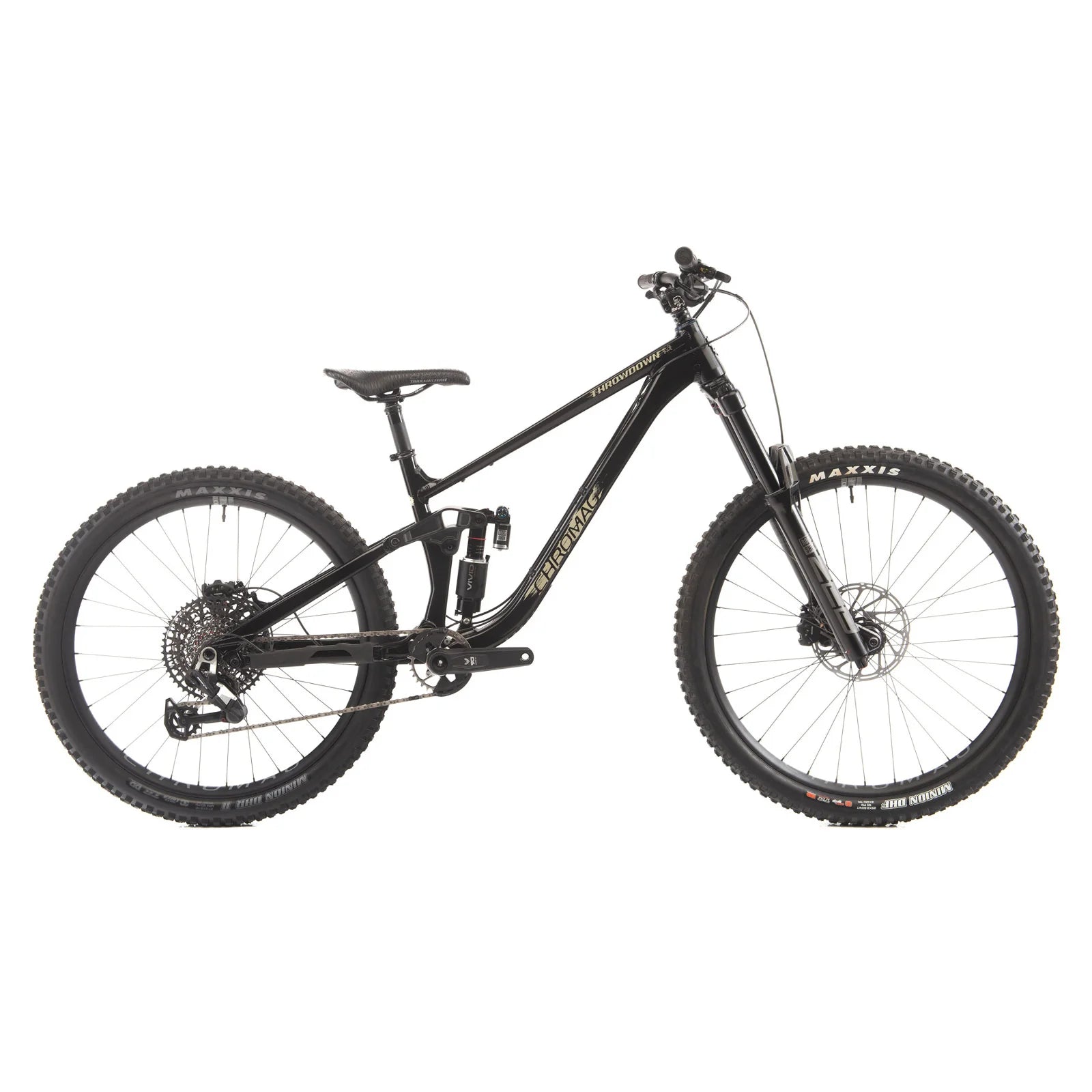

  • Fork // Rock Shox™ ZEB Select+ 170mm, 15x110mm, 44mm, 0/4 Tokens
  • Shock // Rock Shox™ Vivid Ultimate 205x65mm, R55C37 Tune, 2 Tokens
  • Stem // Chromag HiFi BSX 35mm Black
  • Bar // Chromag OSX35 25mm rise Black
  • Headset // Cane Creek 40
  • Crankset // SRAM™ Eagle 90 Crank Transmission 165mm, 30t
  • Brakes // SRAM™ Maven Bronze
  • Rotors // SRAM™ Centerline 2.0 200mm
  • Shifter // SRAM™ Eagle 90 Transmission
  • Cassette // SRAM™ Eagle 90 Transmission
  • Chain // SRAM™ GX Eagle 90 12 Speed T-Type
  • Derailleur // SRAM™ Eagle 90 Transmission
  • BB // DUB 73mm Threaded
  • Wheels // Chromag BA30v2 / R6
  • Tires // Maxxis DHF 2.5/DHR 2.4 Double Down
  • Seatpost // OneUp V3 - S 150mm; M 180mm; M/L 210mm; L 210mm; XL 240mm
  • Saddle // Chromag Trailmaster Black
  • Grips // Chromag Format Black
  • Pedals // -

Build options are subject to availability and liable to change without notice.

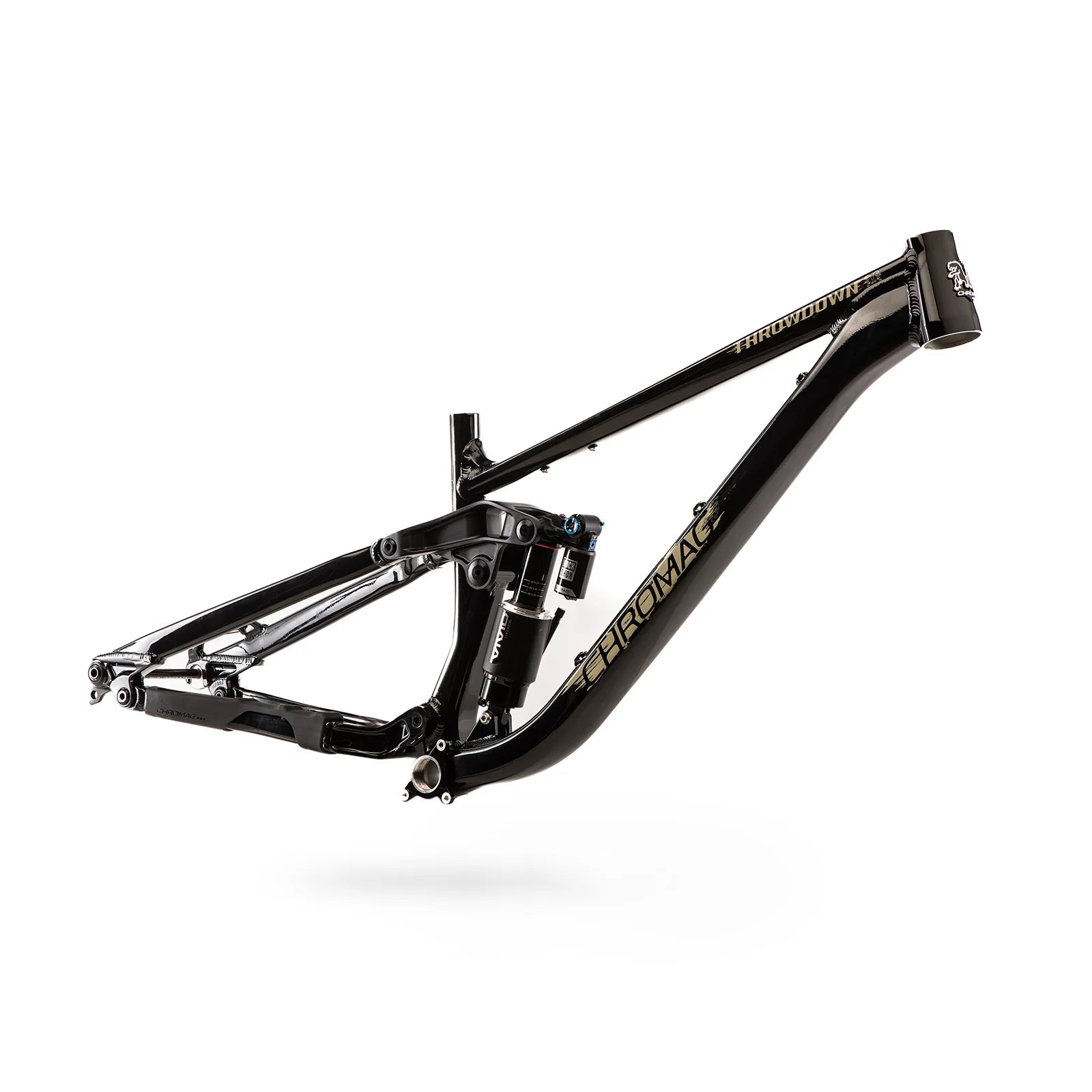

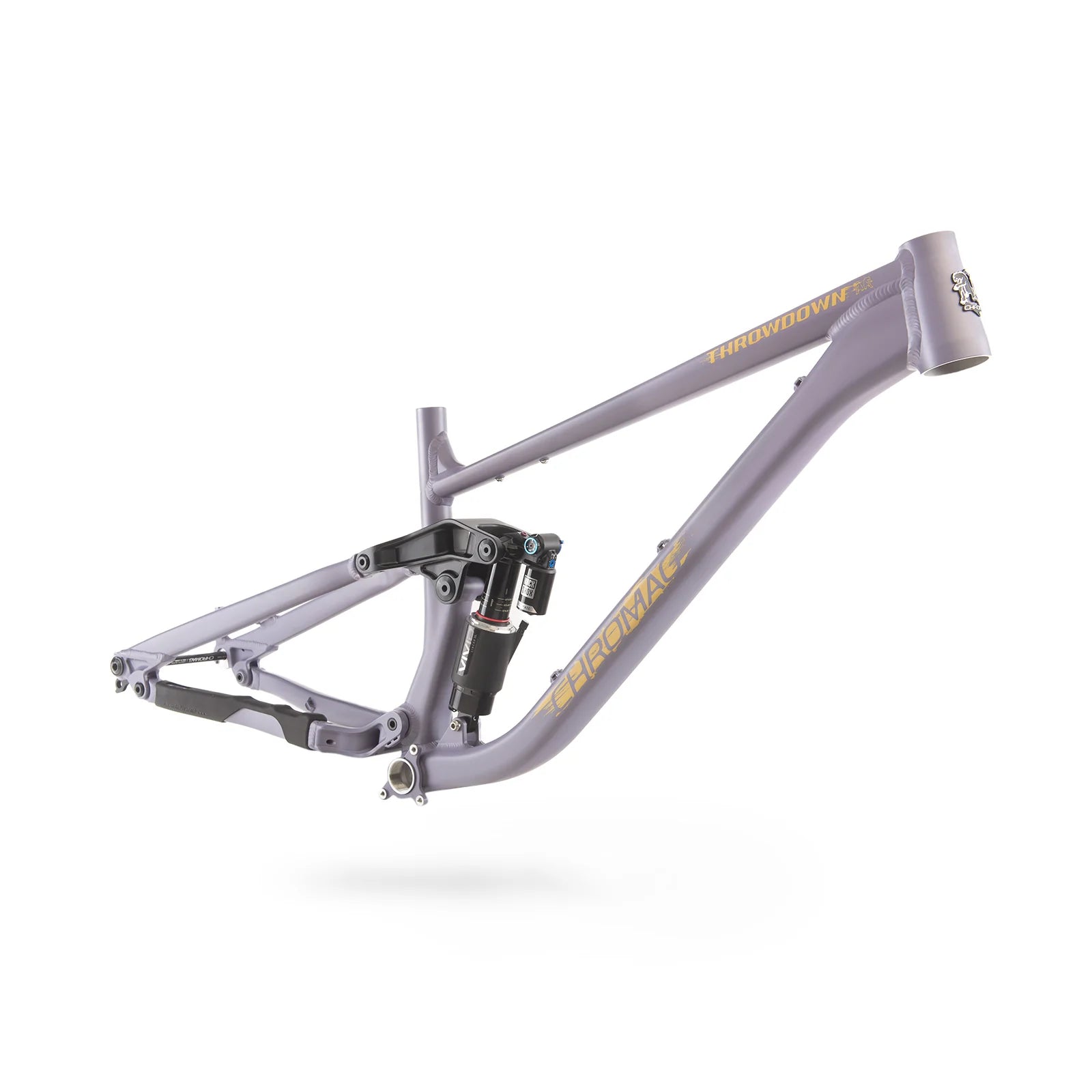

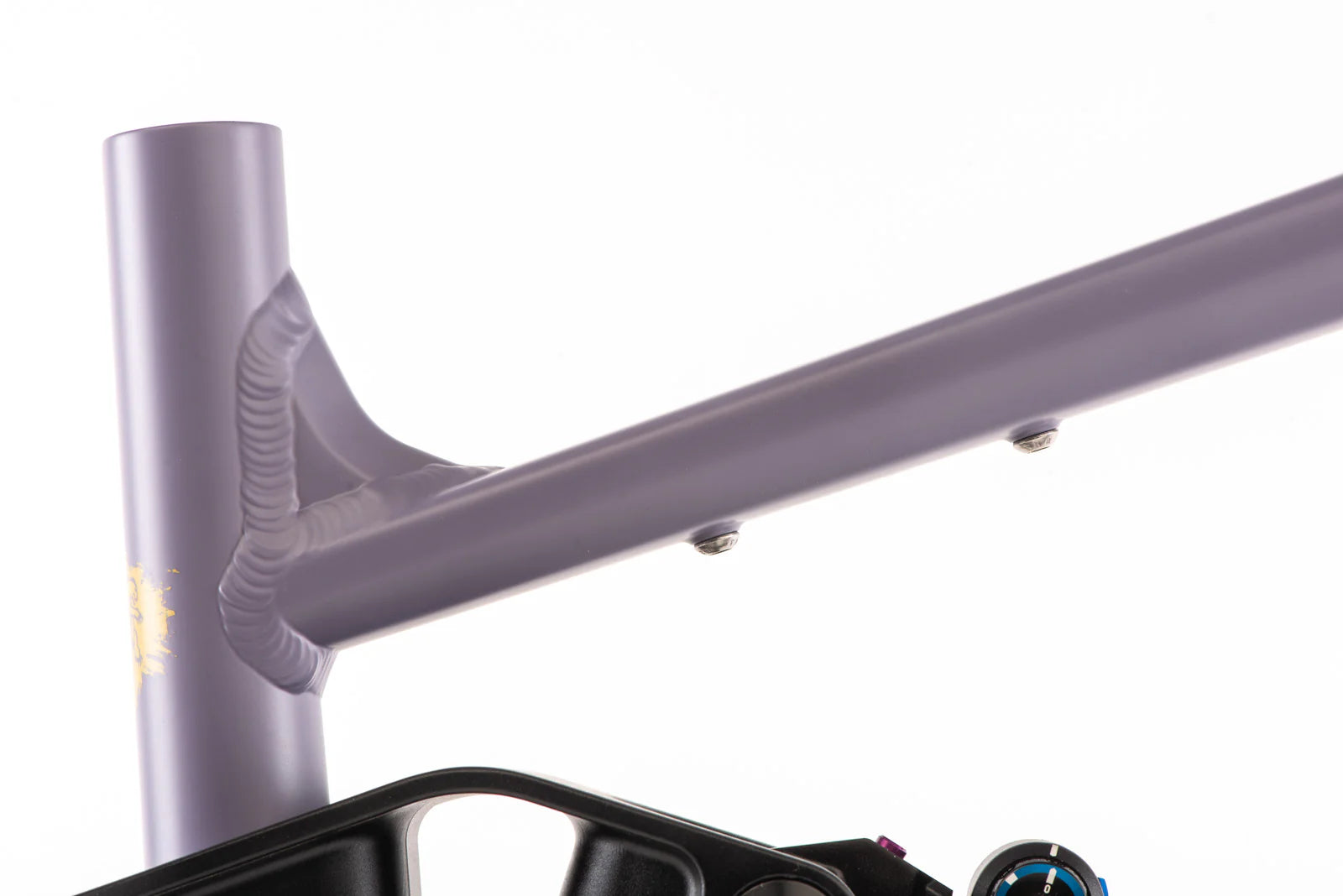

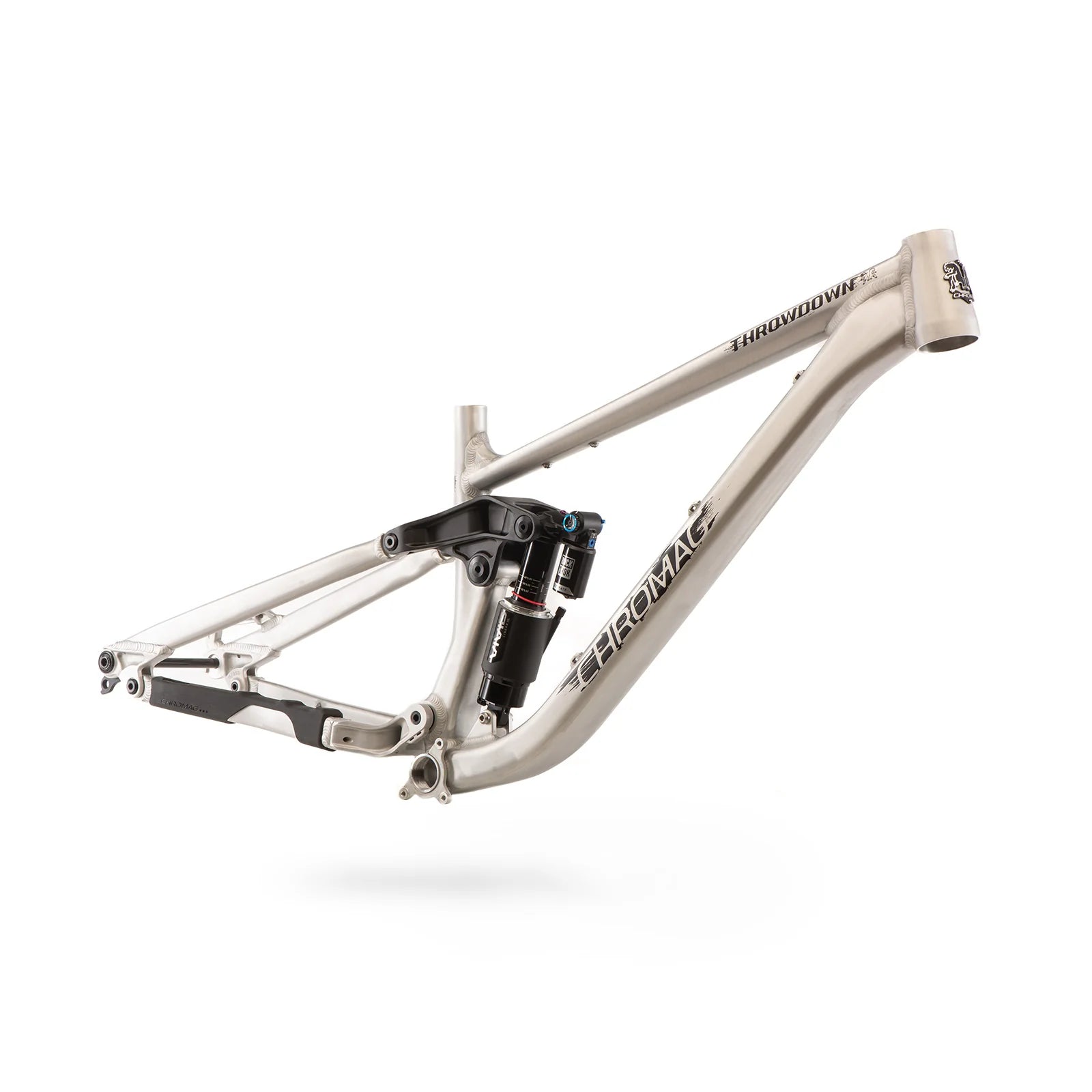

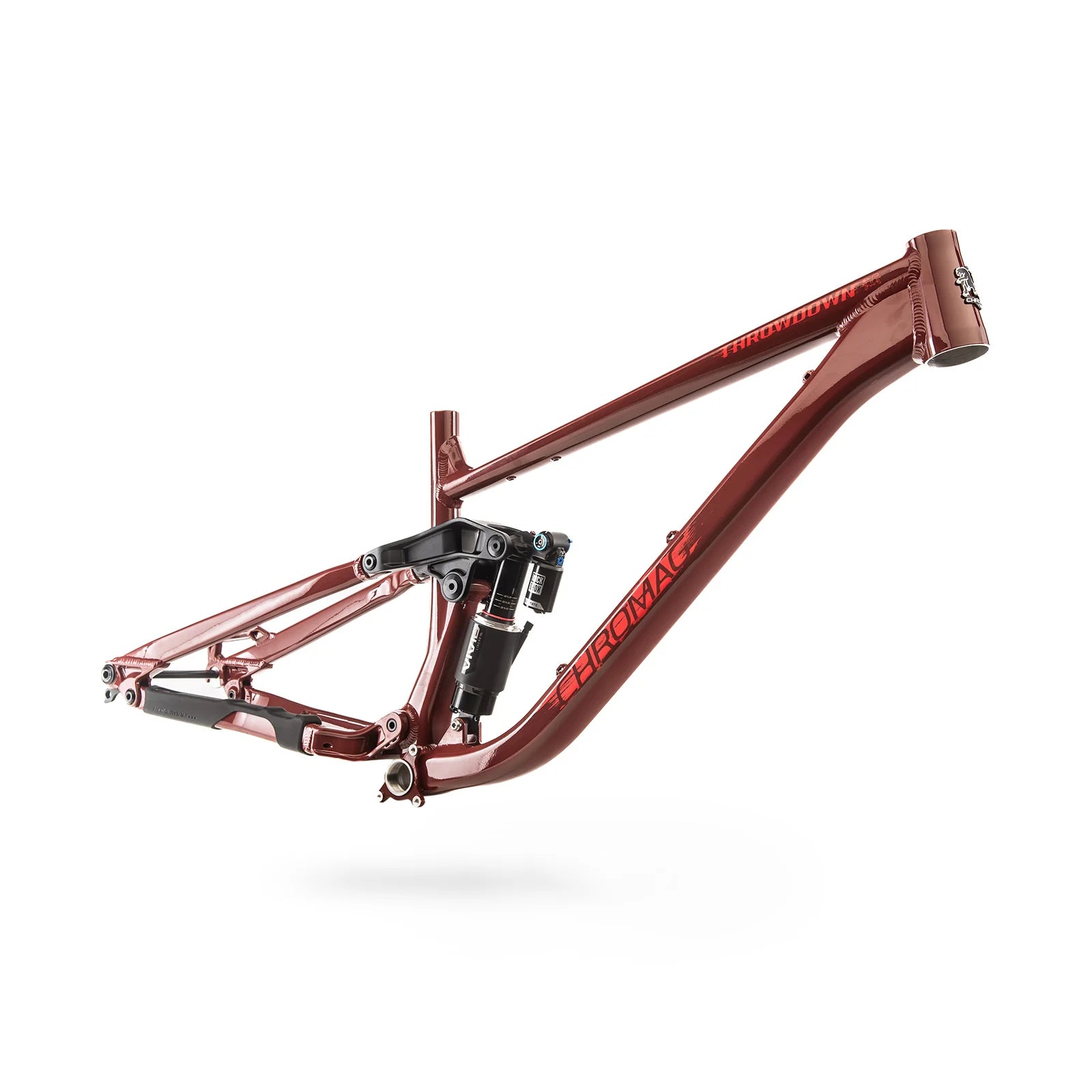

• Frame Construction // 6066 Aluminum
• Rear Travel // 170mm
• Wheel Size // MX: 29” / 27.5"
• Rear Axle // 180mm, M12 X 1.00mm - Boost 148 (Included)
• BB Type // BSA 73mm Threaded
• Headset // 44-56mm

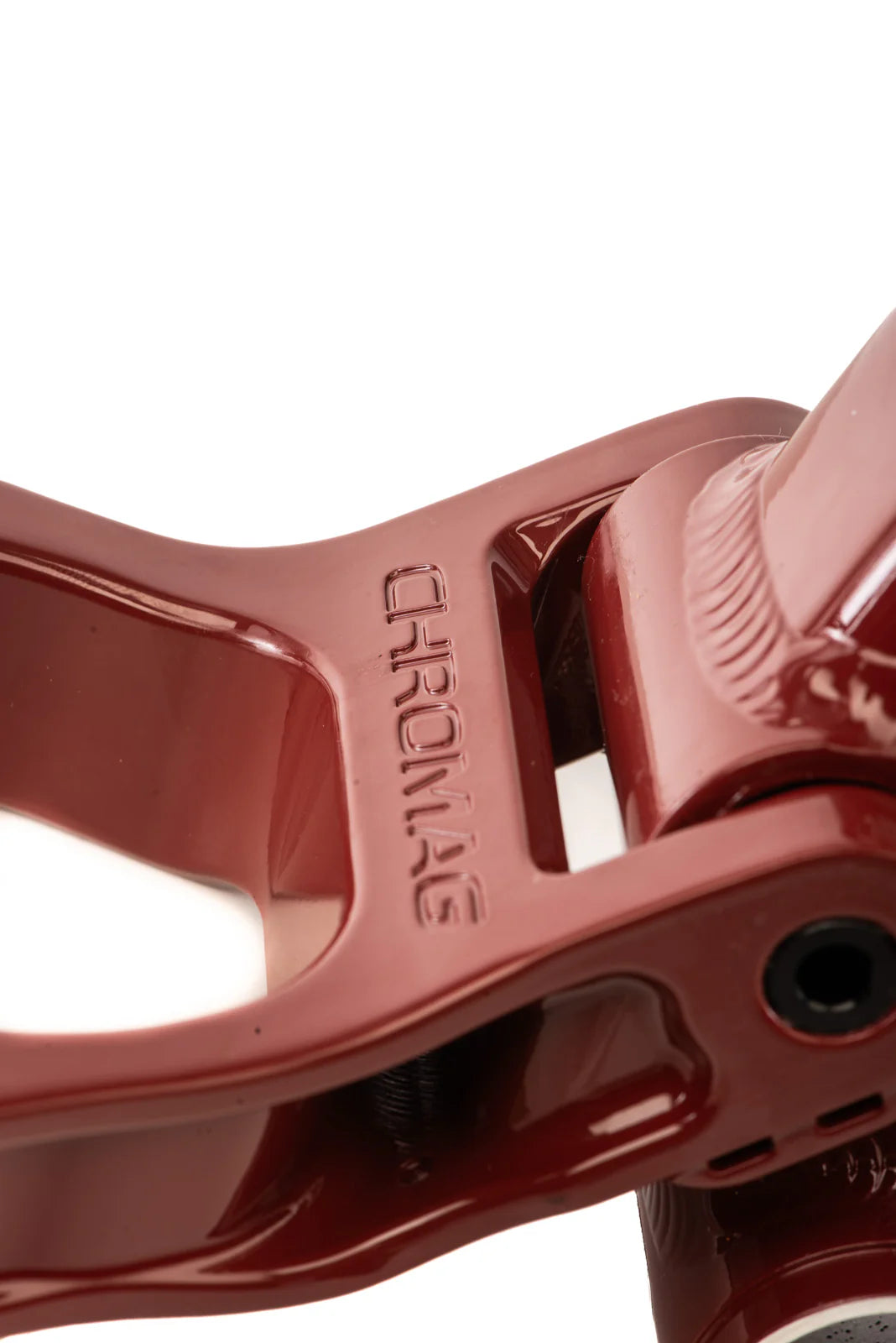

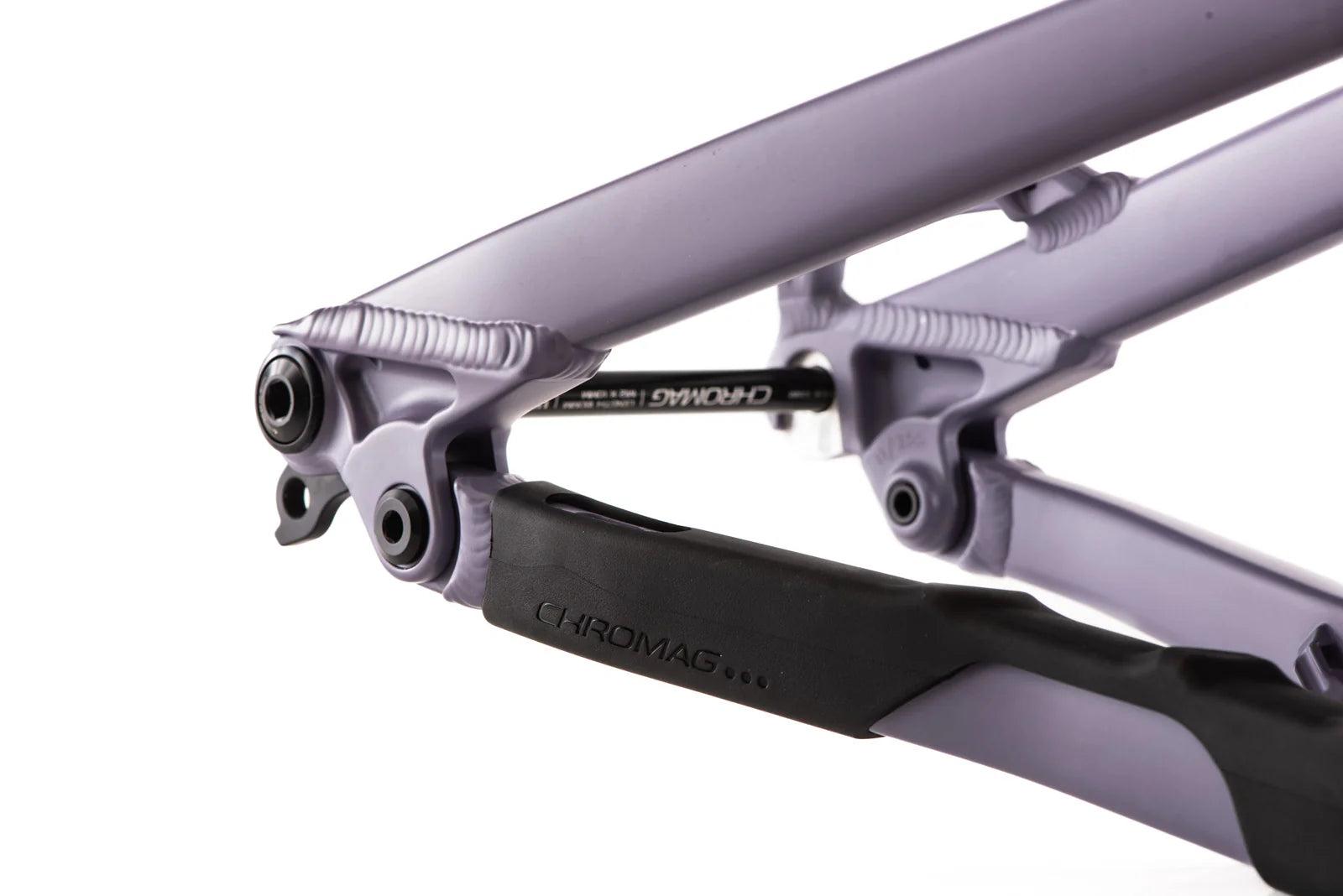

• Linkage // Rocker Driven Horst Linkage
• Shock Size // 205 x 65mm Trunnion
• Lower Shock Hardware // 20 x 8mm
• Hanger // SRAM™ UDH™
• Recommended Fork Offset // 44mm
• Recommended Fork Travel // 170mm
• Seatpost Size // 31.6mm
• Seatclamp Size // 35mm
• Bottle Cage Mount // Yup!
• Gear Mount // Yup!
• ISCG Mount // Yup!
• Brake Mount // 180mm Post
• Frame Weight // M/L 9.9lbs (With shock, axle, hanger, CS protector)
• Origin // Taiwan

Frame Size S M M/L L XL
Stack 624 633 642 651 651
Reach 445 465 485 505 525
Effective Top Tube 576 599 621 643 663
Head Tube 105 105 115 125 125
Wheel base 1224 1249 1273 1304 1324
BB Drop 22 22 22 22 22
BB Height 344 344 344 344 344
Stand Over 686 716 745 774 804
chain stay 435 435 435 442 442
Seat Tube 350 380 410 440 470
Max Post Insertion* 200 230 260 290 320
Head Angle 63.5°
Seat Angle 78°
Wheel Size MX: 29.0/27.5"


* Max. post insertion based on Rockshox Reverb.
