Rise Components

COMMENCAL META POWER SX 400 SIGNATURE GLITTERY WHITE

COMMENCAL META POWER SX 400 SIGNATURE GLITTERY WHITE

Regular price $12,800.00
Regular price Sale price $12,800.00
Sale Sold out
Size

This is an order in only item, contact us for more info and availability

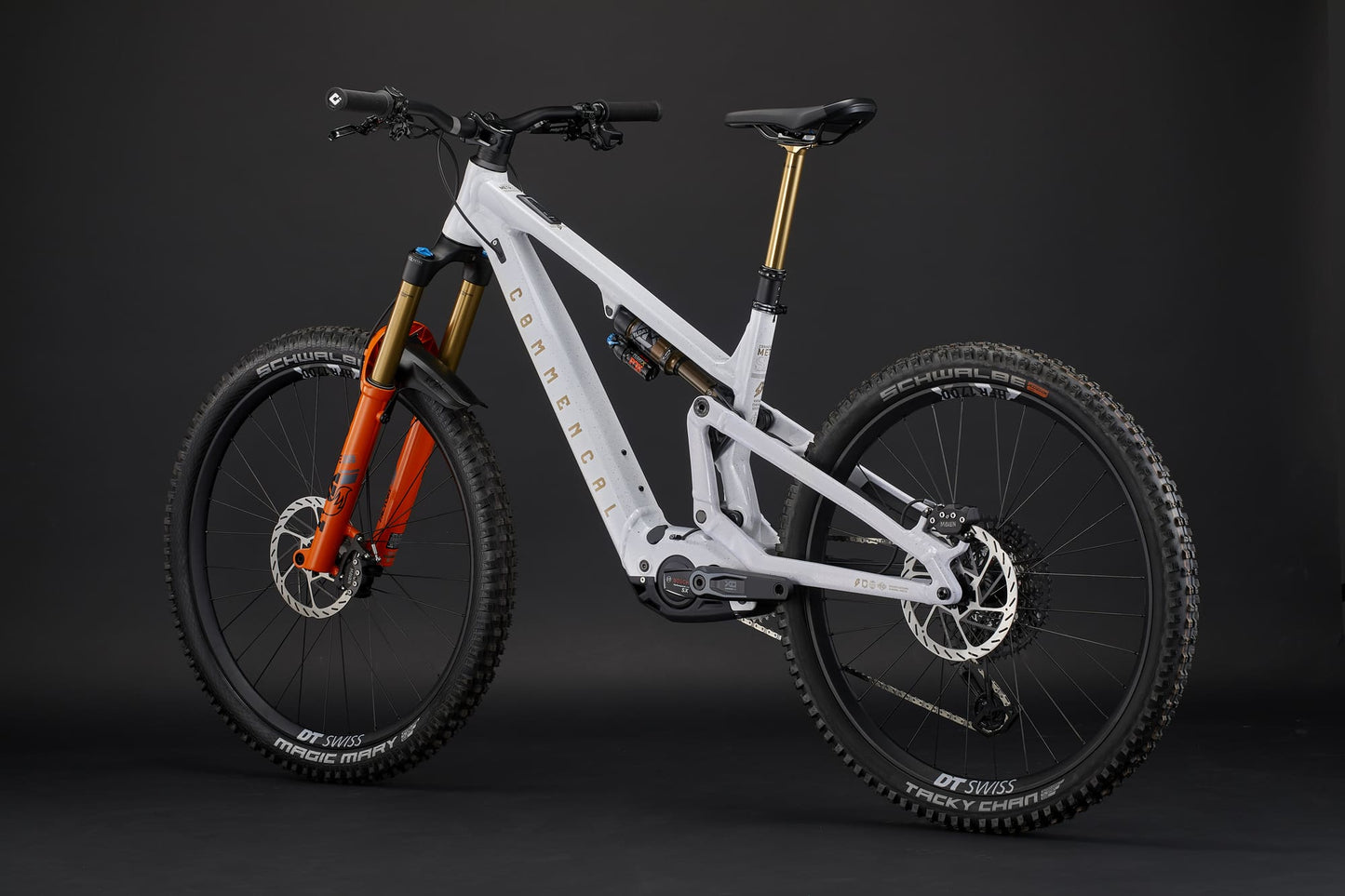

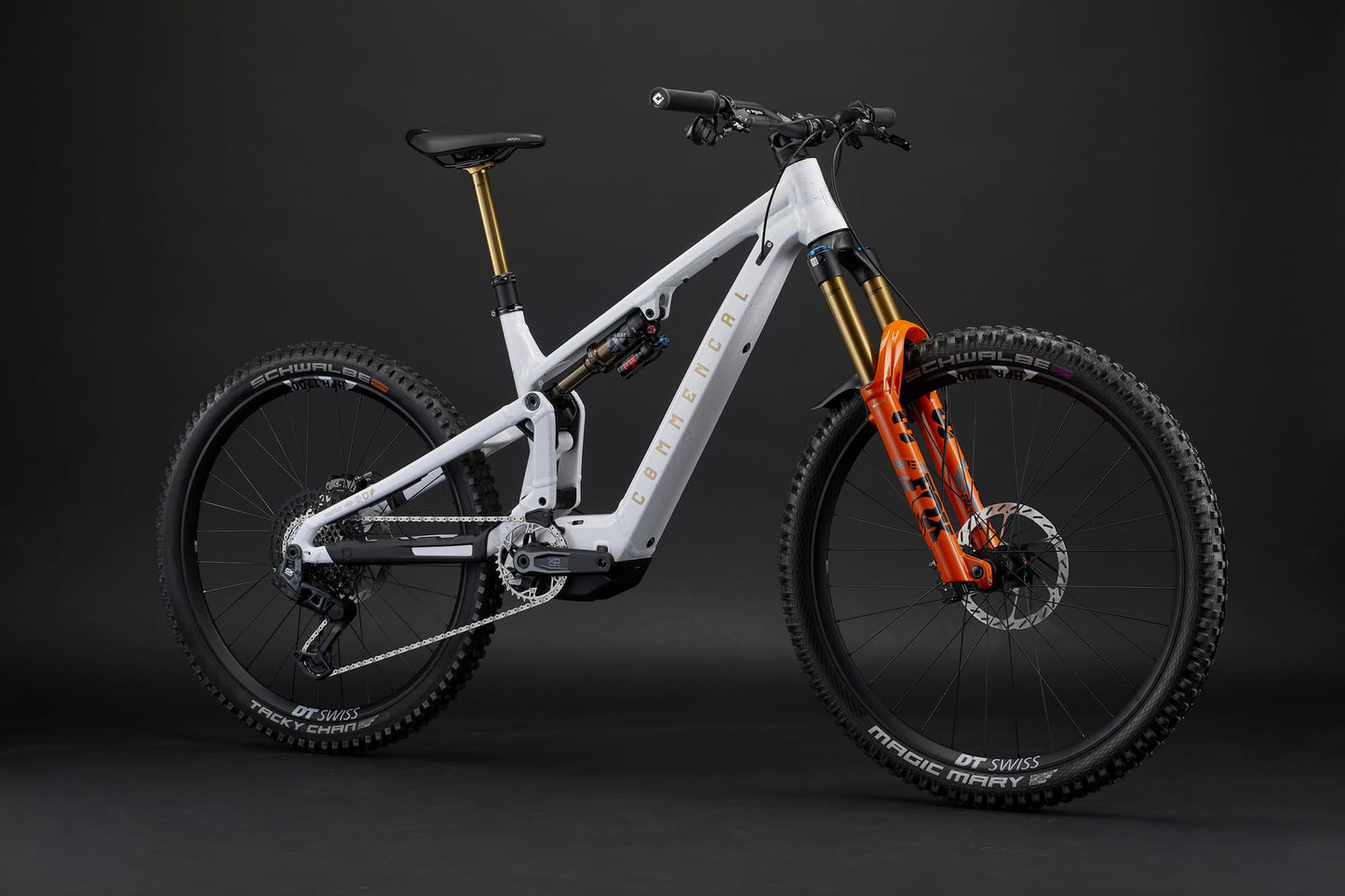

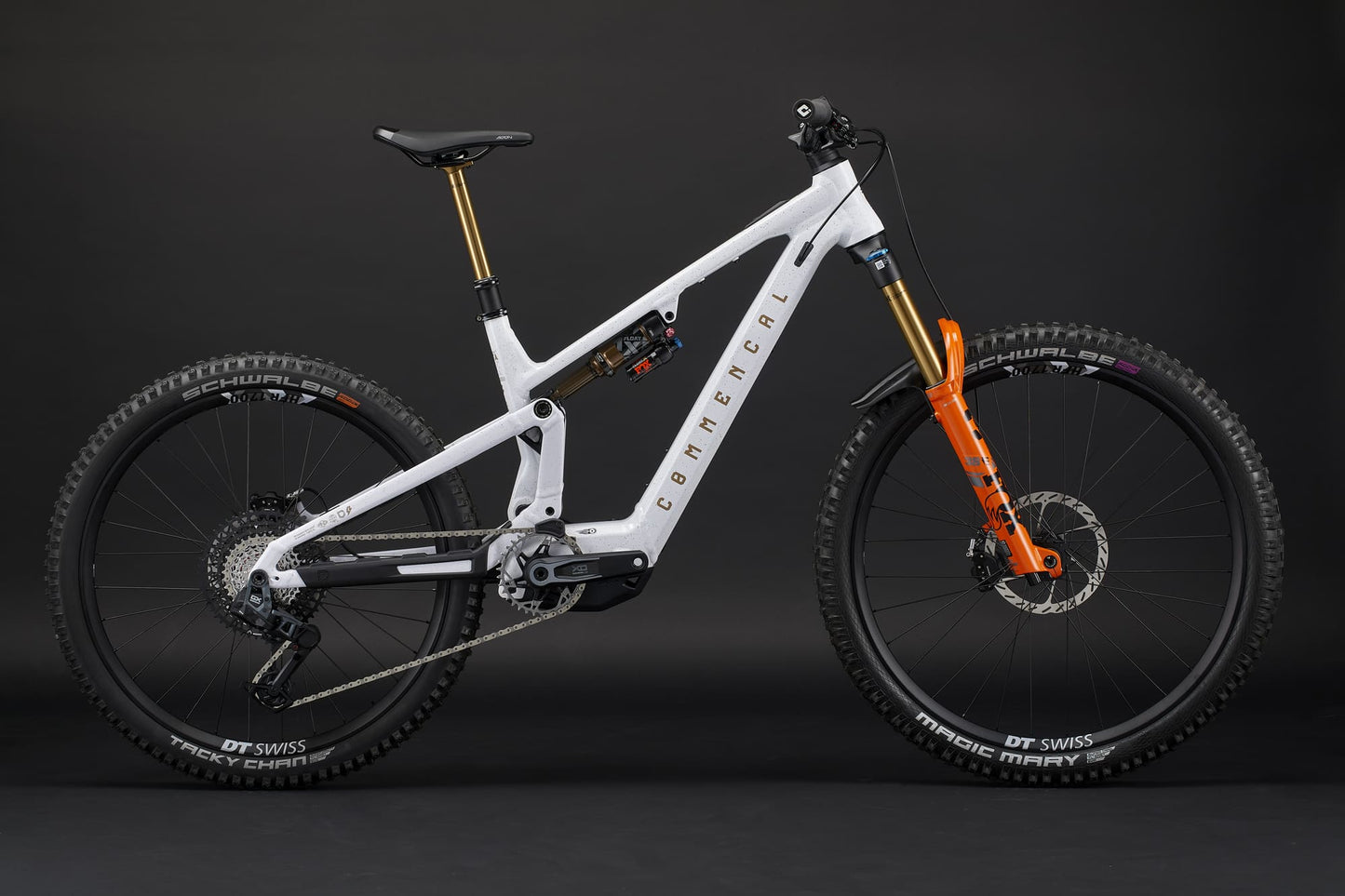

COMMENCAL META POWER SX 400 SIGNATURE GLITTERY WHITE

Our SIGNATURE model is designed to deliver the pinnacle of downhill performance. Every component is chosen for its capability and reliability on steep terrain.

To prioritize the riding experience, we’ve equipped it with the BOSCH Performance Line SX motor. It combines lightweight downhill performance with climbing efficiency, offering up to 600W of maximum power.

The 400Wh internal battery can be paired with a 250Wh range extender for longer rides, maintaining optimal weight distribution.

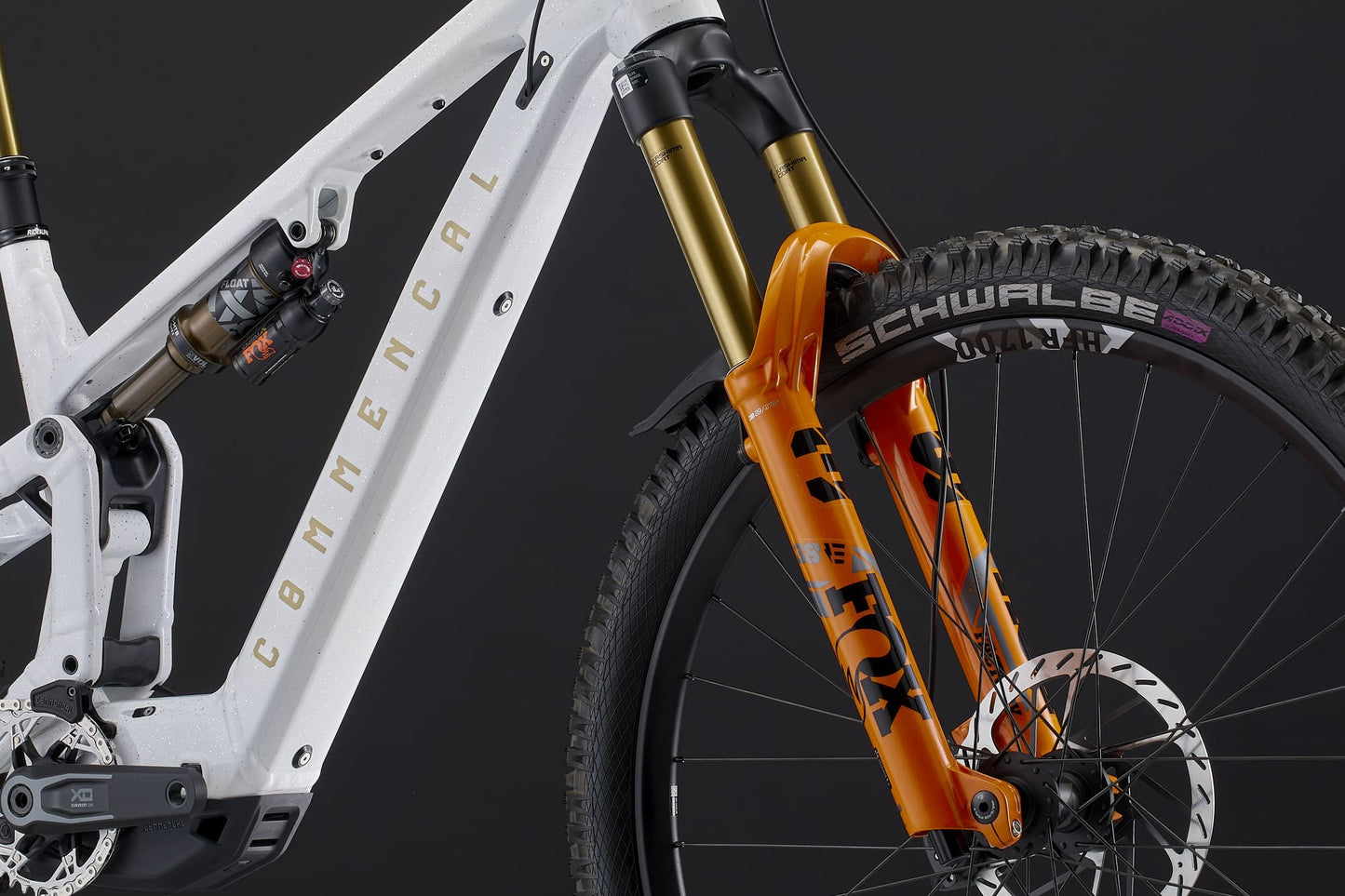

The FOX 38 Factory fork with Kashima-coated stanchions, a precise e-bike chassis, and the new GRIP X2 damper cartridge with multiple adjustments represent FOX's top-of-the-line offering.

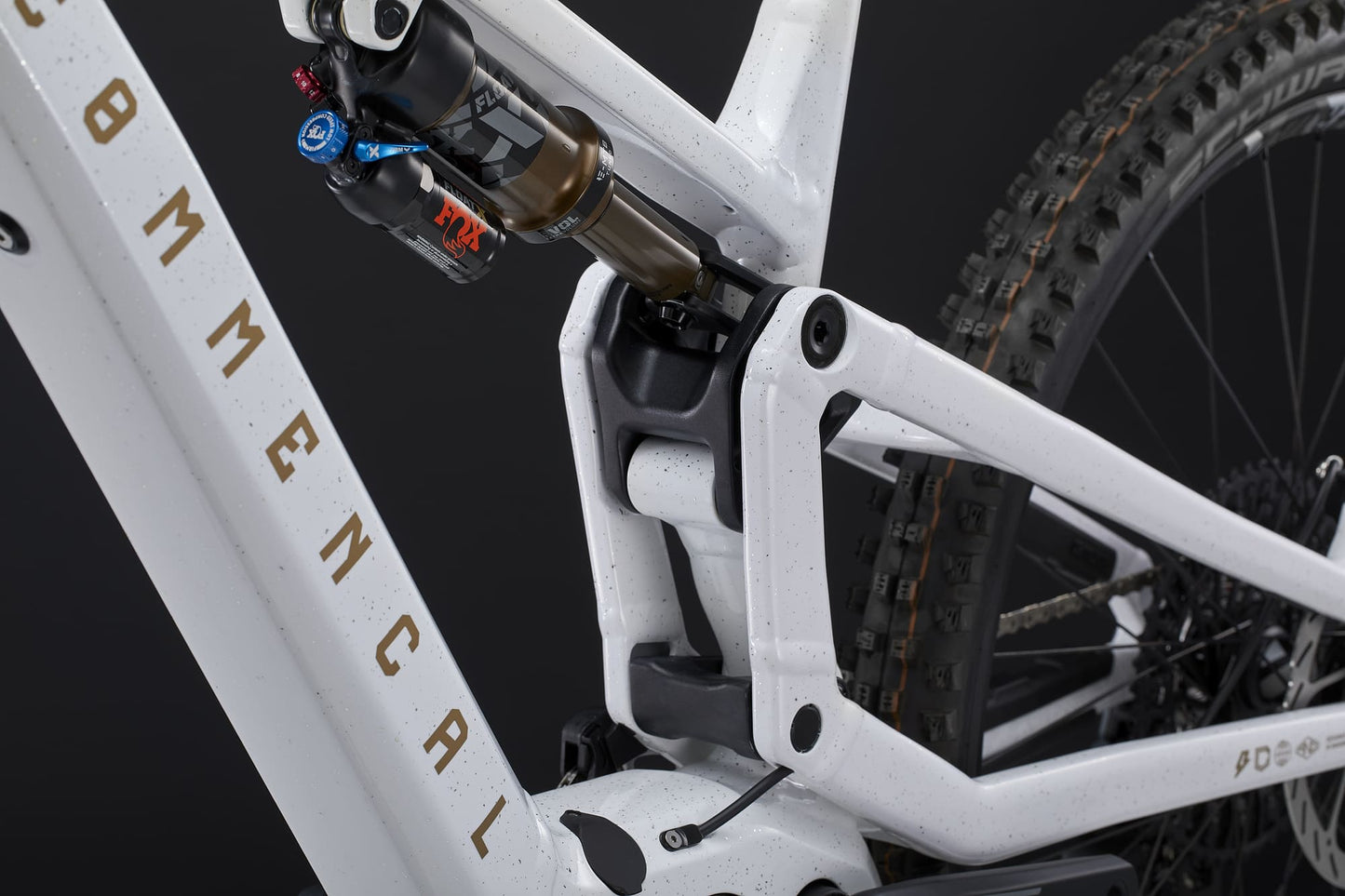

For the rear suspension, the Float X Factory shock with custom tuning strikes the perfect balance between grip, responsiveness, and comfort. Low-speed rebound and compression settings can be adjusted to your liking and trail demands, and the lockout lever aids in pedalling.

The new DT SWISS HFR 1700 wheels are specifically designed for e-bike gravity riding. The DT 350 hubs, rims, and spokes are reinforced, and their hand-built construction takes reliability to the next level, ready for the harshest conditions.

The SRAM GX Eagle transmission, featuring wireless shifting, offers precise gear changes in any condition. Its modular design allows easy replacement of wear-prone parts.

Braking is handled by SRAM, with MAVEN calipers and 200mm HS2 rotors. These brakes, widely praised by DH World Cup riders, are the most powerful on the market.

The FOX Transfer Factory dropper post with Kashima coating adds the final touch to this premium, high-performance, and reliable setup.

*Bike specifications are subject to change without notice.



- TECHNICAL INFO -
  • Bicycle type

    E-BIKE ENDURO 29''/27''

  • Frame material

    AL 6061 + AL 6066 - T6

  • Rear travel

    170 mm

  • Shock length/stroke

    230 x 65 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm front

  • Recommended/max. fork height

    588 mm (44 offset) / 598 mm

  • Headset dimension

    ZS56 / 28,6 - ZS66 / 40

  • Headset type

    Tapered

  • Maximum tyre dimension (etrto)

    65 - 584 mm

  • Disc brake standard

    PM200

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    BOSCH E-BIKE

  • ISCG

    Yes (BOSCH Standard)

  • Rear hub compatibility

    12 x 148 mm UDH



- SPECIFICATIONS -

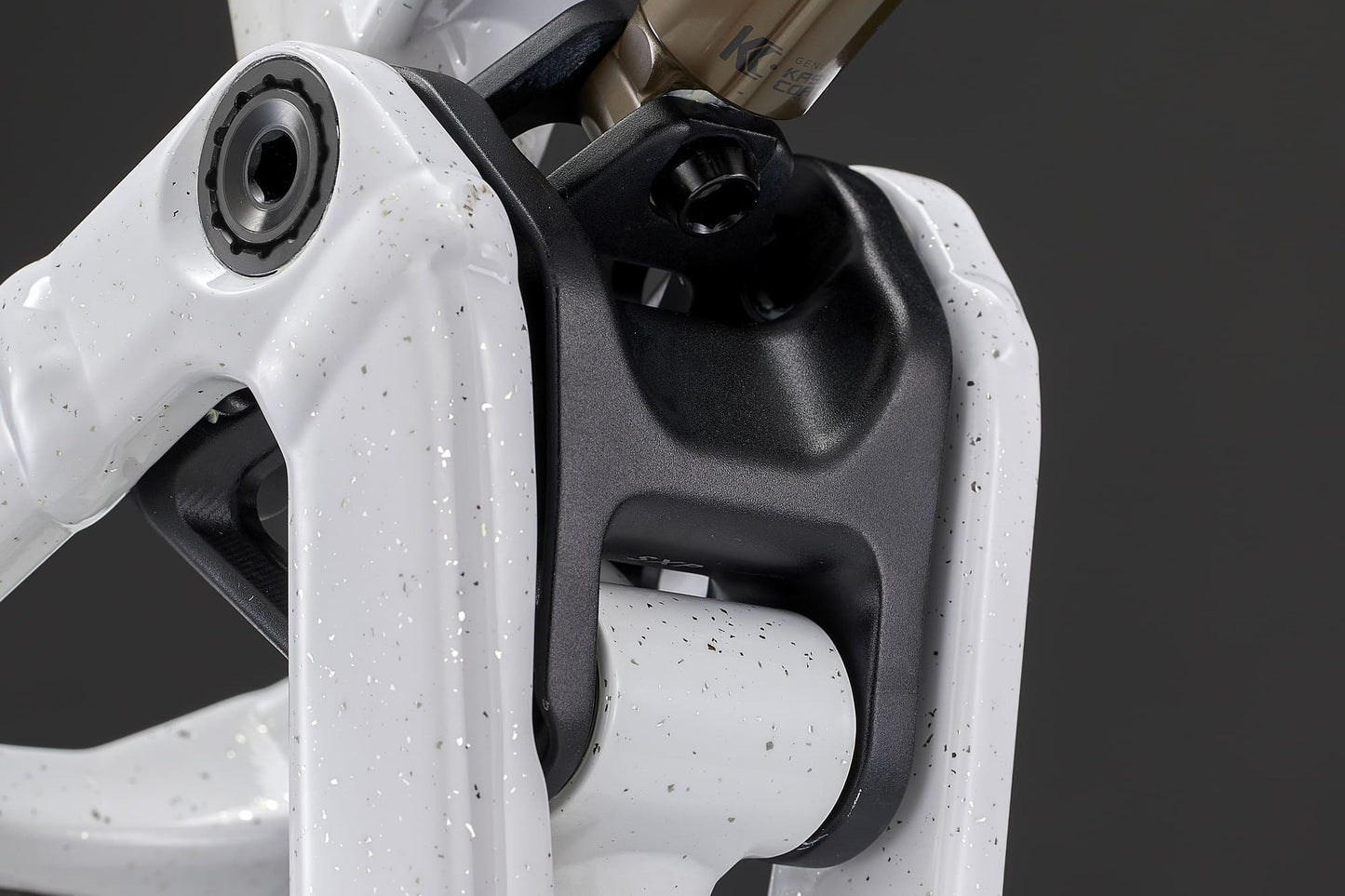

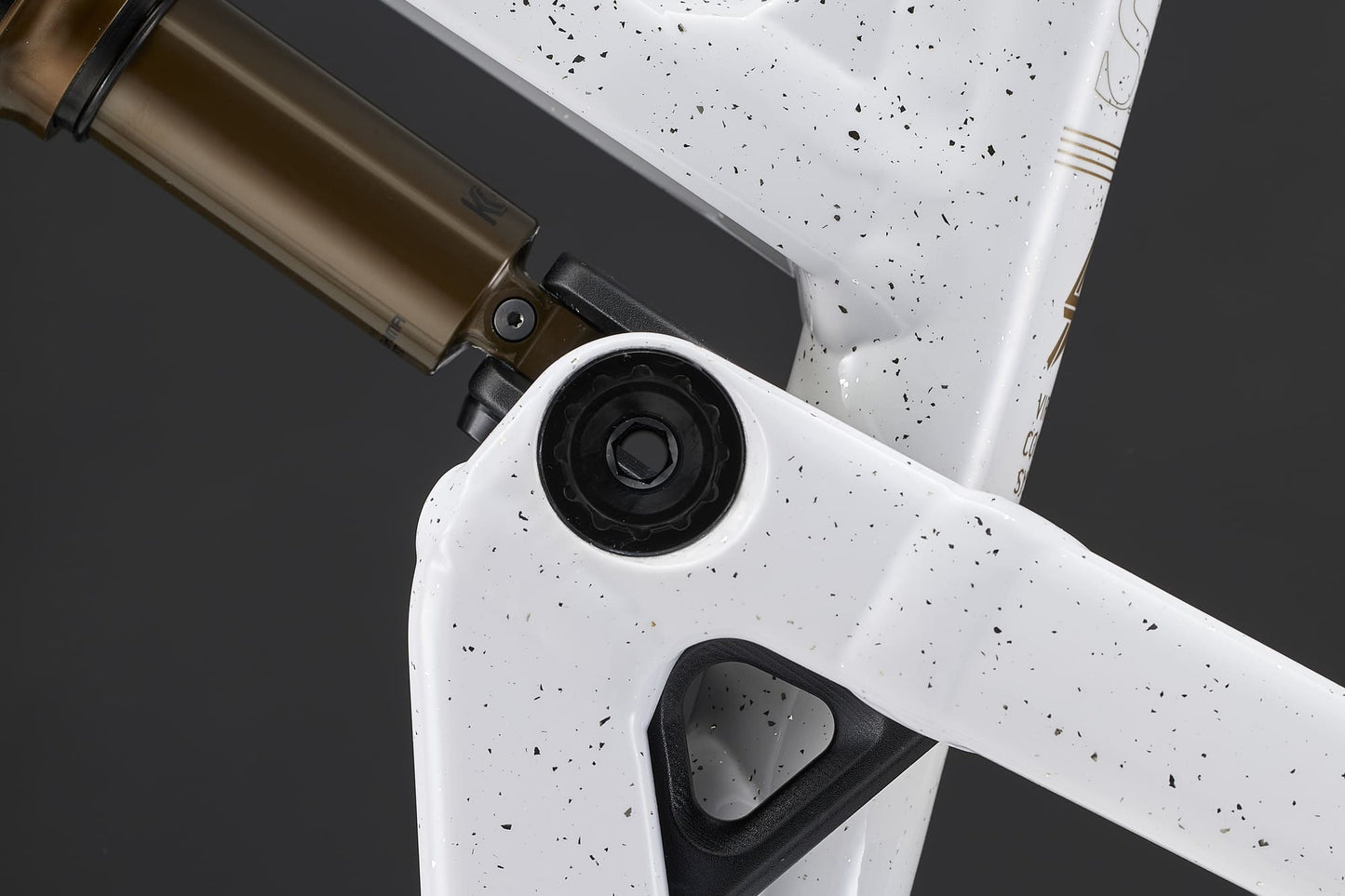

  • Frame

    META POWER SX BOSCH, 170 mm travel
    29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu Bearings

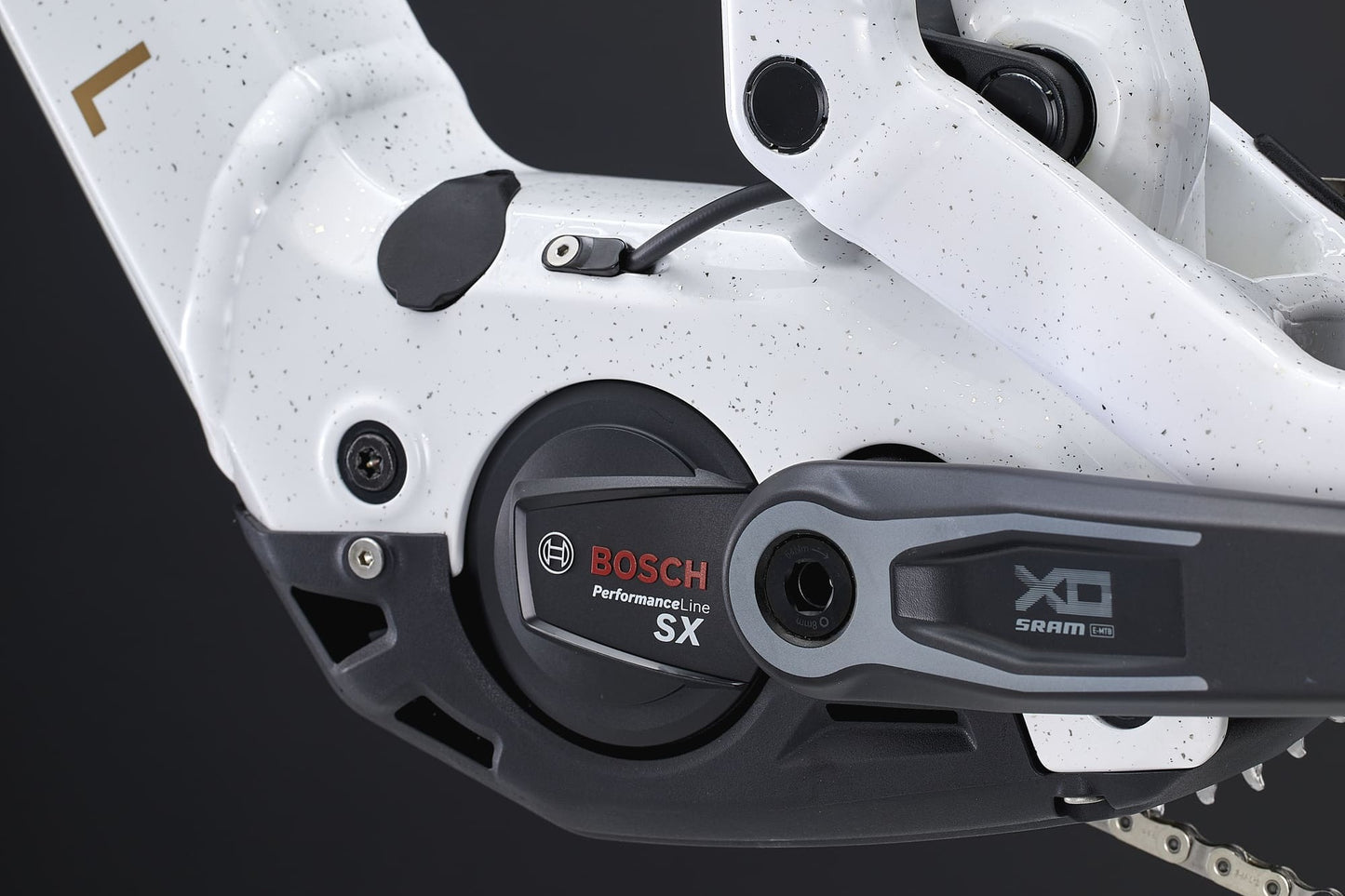

  • Motor

    BOSCH Performance Line SX
    Max. torque: 55 N.m, 250 W

  • Battery

    BOSCH Compact Powertube 400
    Fully integrated main battery, 400 Wh

  • Display

    BOSCH System Controller
    ON/OFF switch, assist mode level, battery charge level

  • Shock

    FOX Float X Factory
    230 x 65 mm, 2-postion (open/firm) lever, LSC, LSR, 0.4 spacers

  • Fork

    FOX 38 Factory E-Bike, 170 mm
    29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacers

  • Headset

    ACROS ZS56 / ZS66
    Alloy cups, stainless steel & sealed bearings

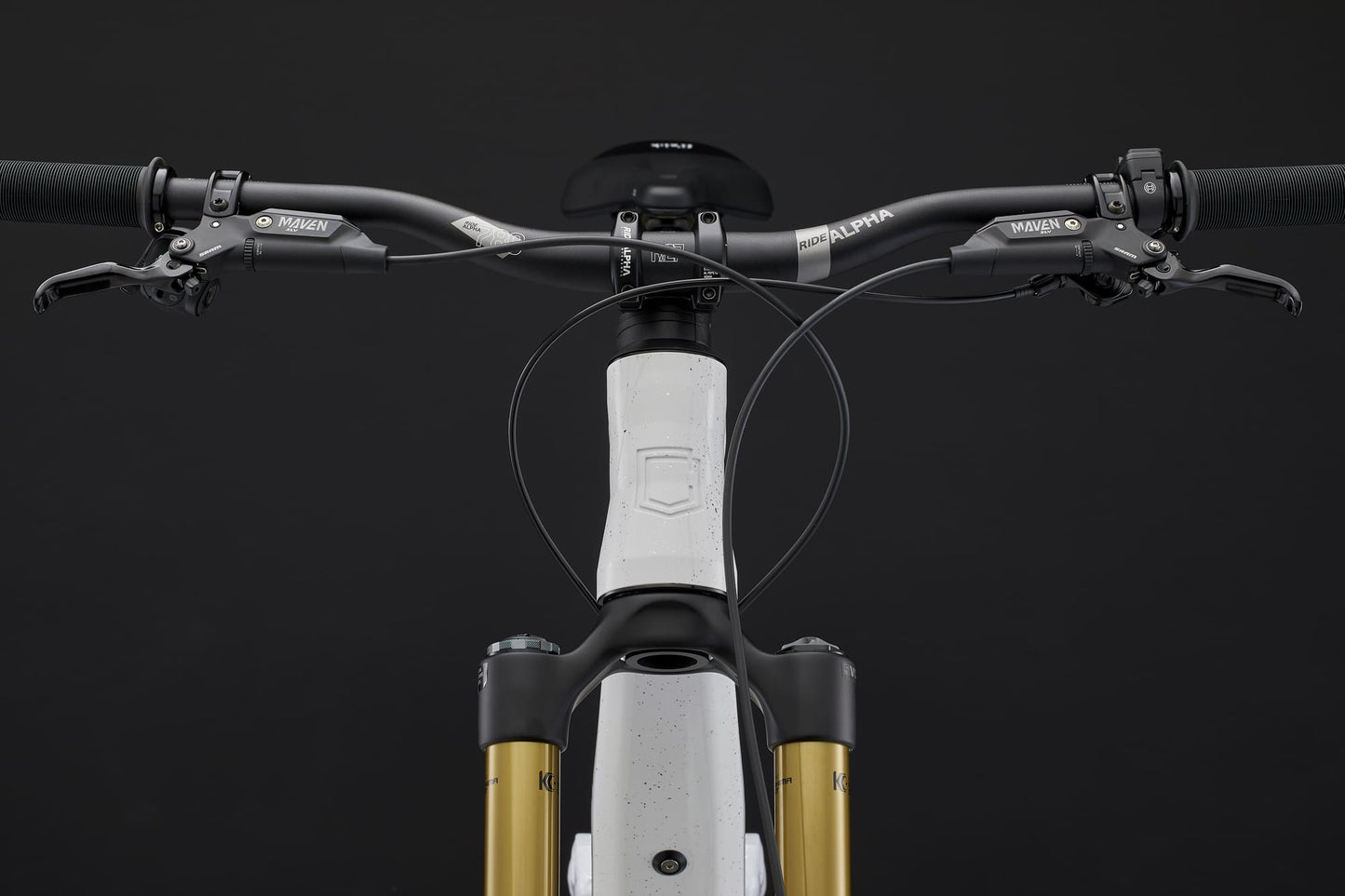

  • Stem

    RIDE ALPHA 40
    40 mm extension, 31.8 mm

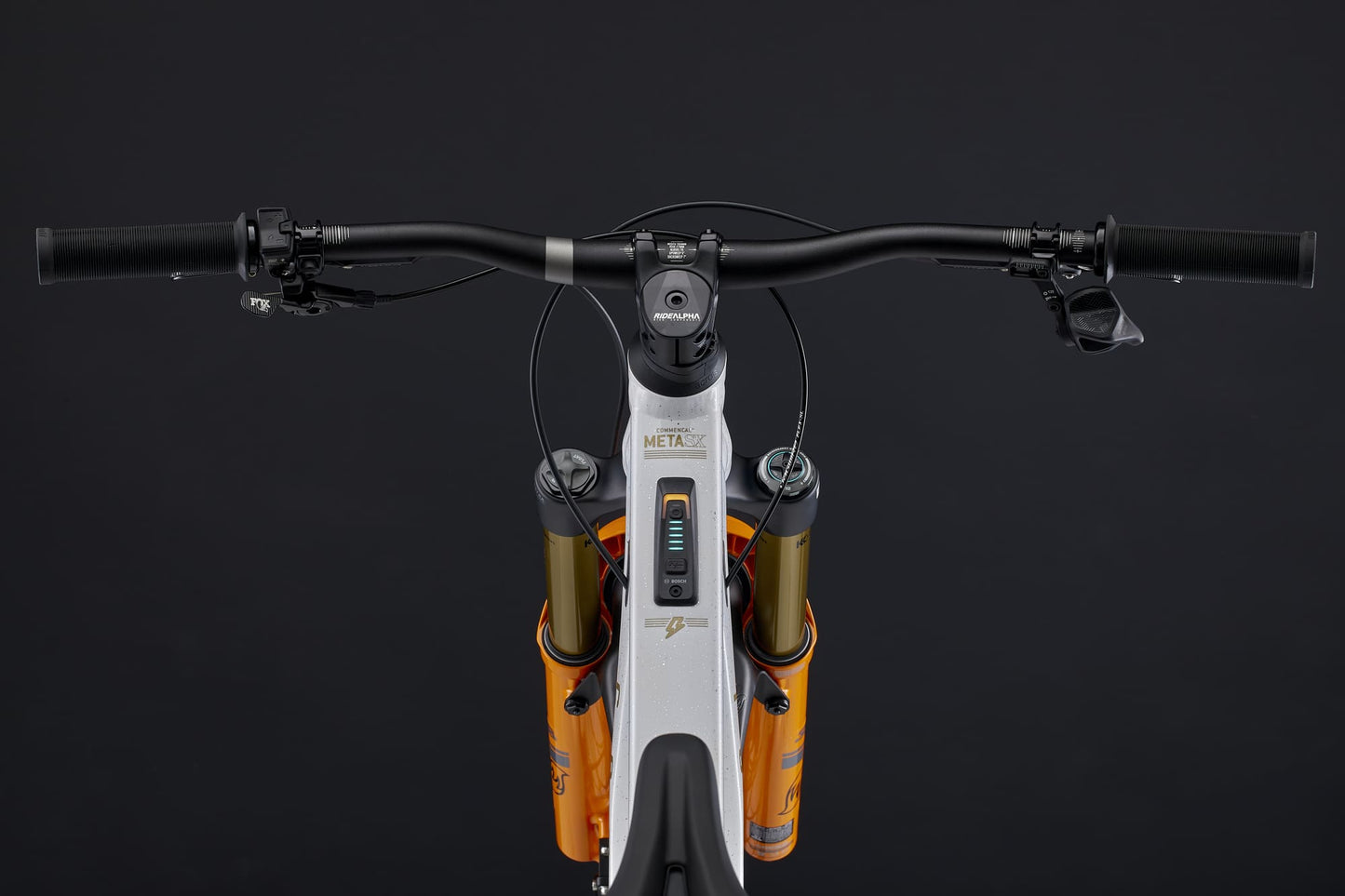

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Longneck 2.1
    Soft compound, single clamp, black

  • Brakes

    SRAM MAVEN Silver, 4 pistons, steel-backed organic pads
    Rotors: SRAM HS2 200mm, 6-bolt
    Motostyle braking: front brake with right lever / rear brake with left lever

  • Shifters

    SRAM AXS POD Controller
    12s

  • Chain guide

    RIDE ALPHA
    32-34t

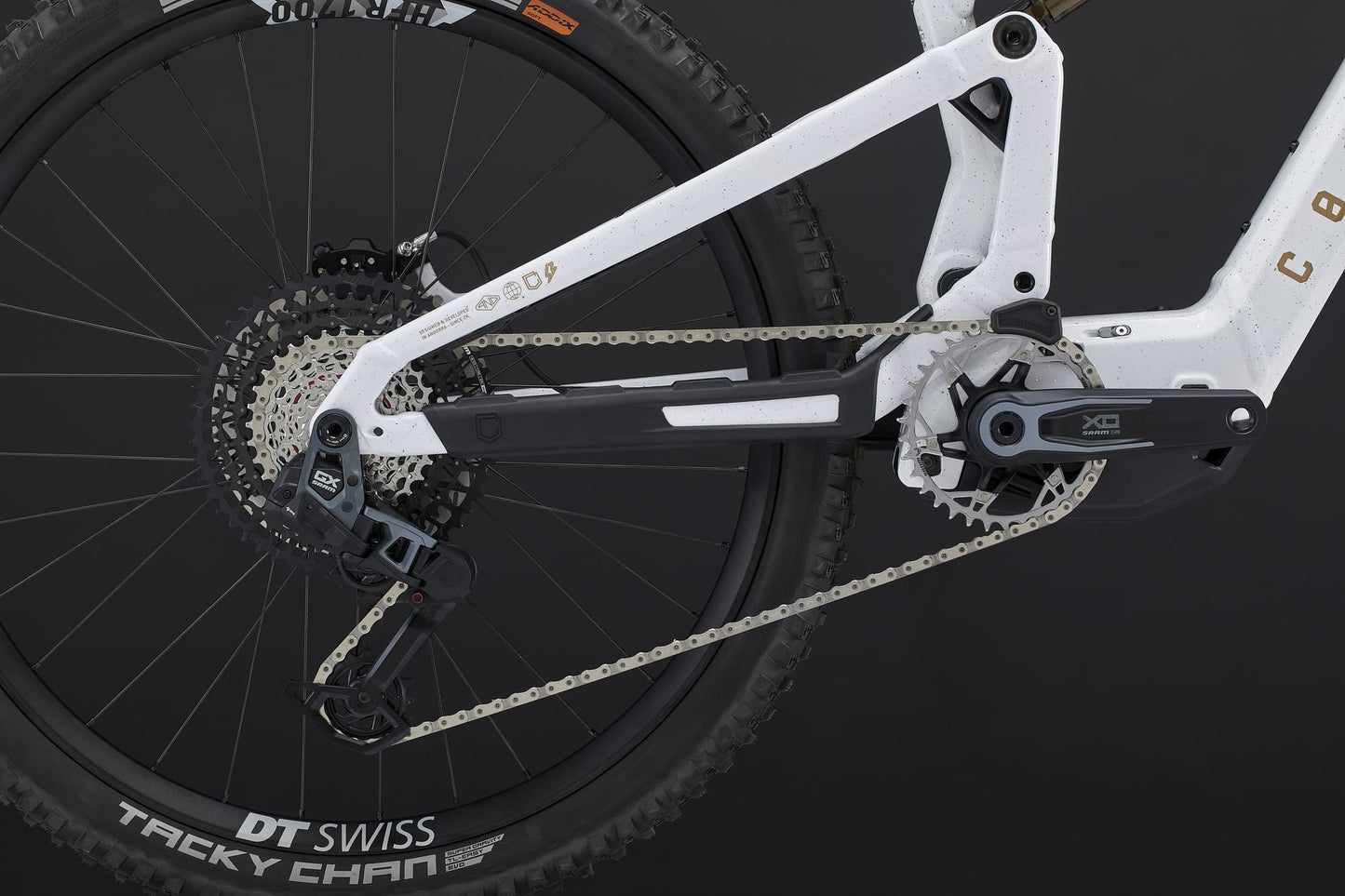

  • REAR DERAILLEUR

    SRAM GX Eagle Transmission
    12s, AXS, T-Type

  • Crankset

    SRAM X0 Eagle E-MTB, 155 mm crank arms, Bosch
    Chainring: SRAM XX Eagle Transmission E-MTB, 34t for Bosch system Gen 4, direct mount, T-Type

  • Chain

    SRAM GX Eagle Transmission
    12s, Flattop, T-Type

  • Cassette

    SRAM GX Eagle Transmission
    12s, 10-52t, T-Type

  • Rims

    DT SWISS HFR1700 Classic
    Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

  • Hubs

    DT SWISS 350
    Rear: 28h, sealed bearings, 12 x 148 mm, 24t, Sram XD, e-bike specific - Front: 28h, sealed bearings, 15 x 110 mm

  • Spokes/nipples

    DT SWISS Hybrid 3
    Straightpull, 2.34/2.0 mm, double butted, stainless, with ProLock, black

  • Tyres

    Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
    Rear: 27.5'' x 2.4'', Super Gravity, Addix Soft, Tubeless Easy- Front: 29" x 2.4'', Super Trail, Addix Ultra Soft, Tubeless Easy

  • Seat post

    FOX Transfer Factory
    34.9 mm, 150 mm on S, 180 mm on M and 210 mm on L/XL

  • Saddle

    FIZIK Terra Aidon X5
    145 mm width, S-Alloy Mobius rails

  • Weight

    21,9 kg / 48.39 lbs
    Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    CRANKBROTHERS Stamp 1

  • Colour

    Glittery White
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, Fox 38 specific fender, pedals
    Battery charger: BOSCH 4A Charger. Compact size & lightweight

    *Please note that bike specs are subject to change without prior notice.

  • Battery recycling

    Partnership with BOSCH
    The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
    Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.

    Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
