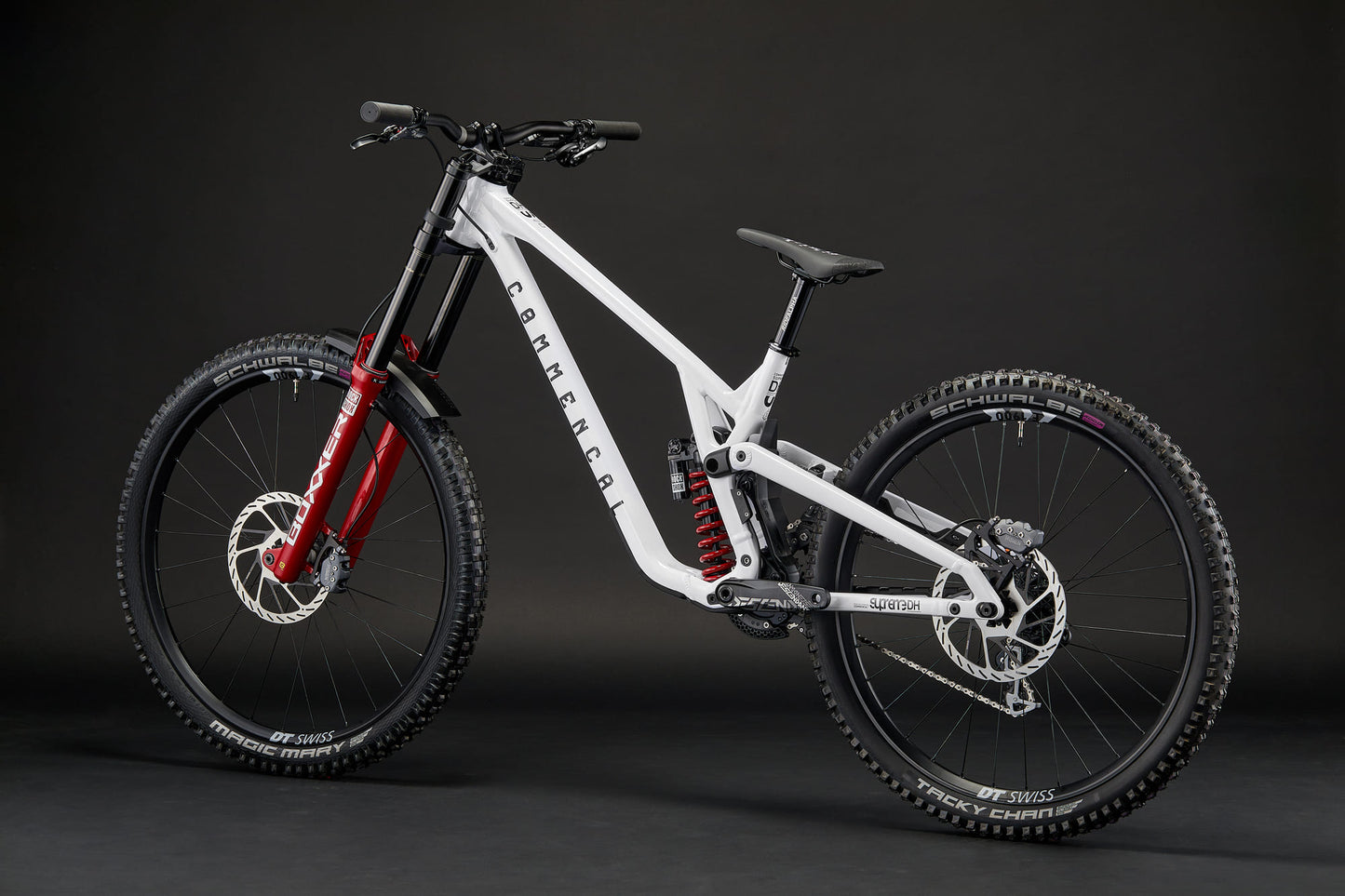

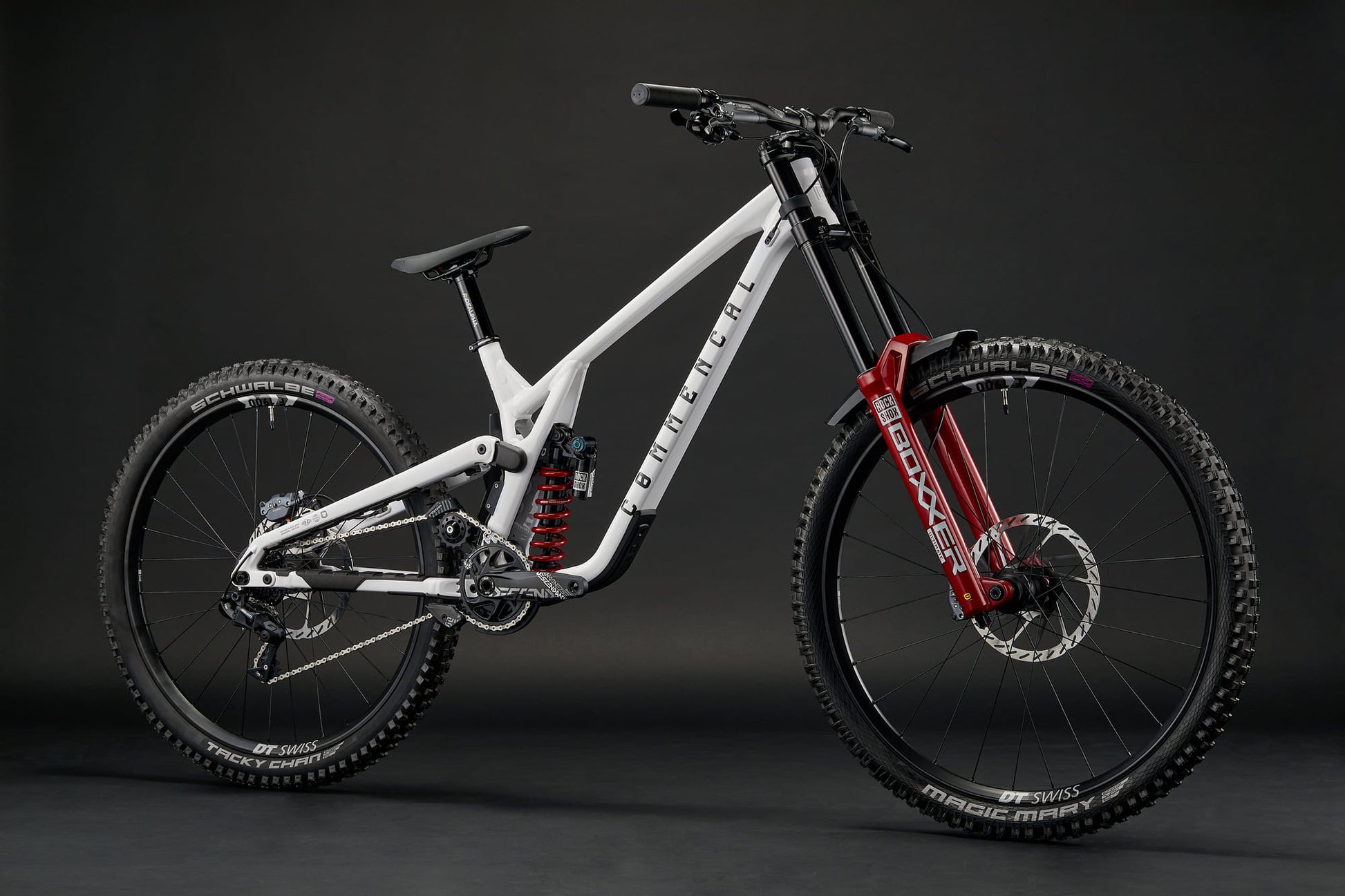

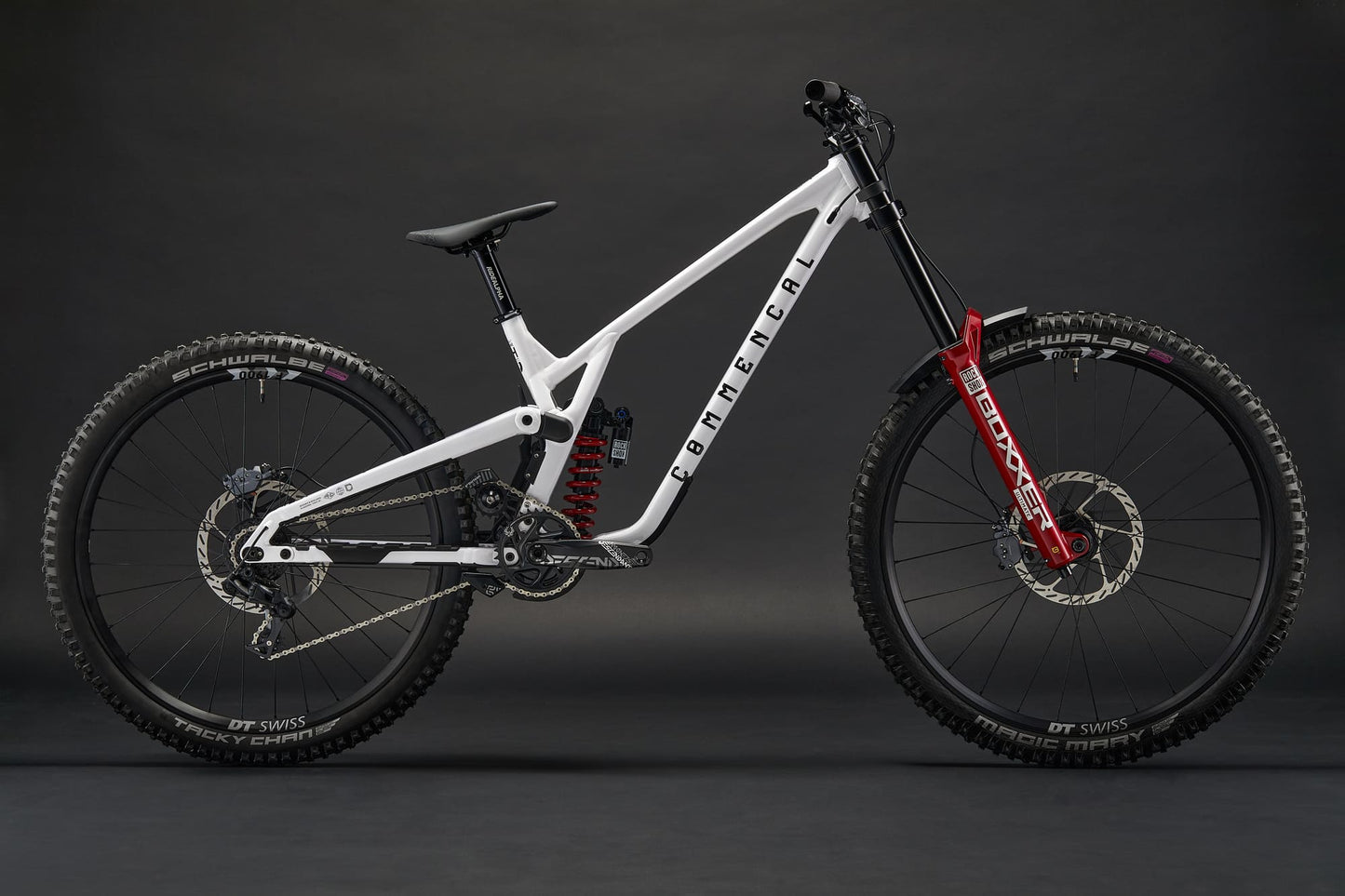

COMMENCAL SUPREME DH V5 ROCKSHOX PURE WHITE

This is an order in only item, please contact us if you're interested in a commencal

The SUPREME DH V5 is our pure race machine. It is the result of three years of work between our R&D department and our athletes. From the bike’s very first season racing World Cups, the results have been the best advertisement: 9 wins, 27 podiums and a first place in the Elite Women, Men and Team rankings.

With a concentrate of technologies and experience, the V5 inaugurates the High Virtual Contact System kinematics. This is our interpretation of the most efficient system for combining liveliness and shock absorption. Thanks to the inserts in the aluminium frame, the geometry and behaviour of the bike can be adapted to suit the conditions of the day.

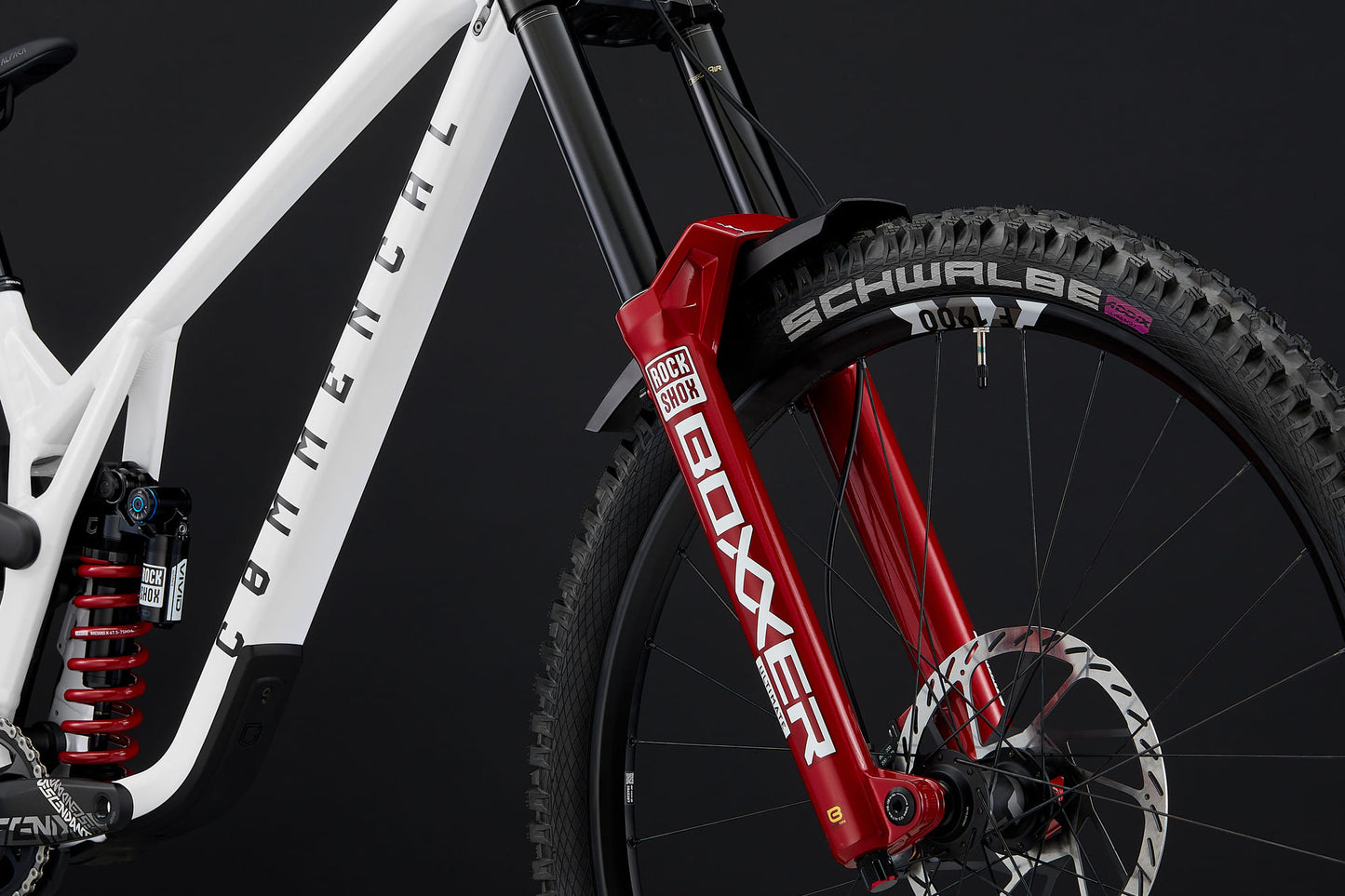

The ROCKSHOX Boxxer Ultimate is a high-end downhill fork, equipped with the Charger 3 damper for precise adjustment (HSC, LSC, HSR, LSR). Designed for performance, it incorporates Electric Tall technology for increased stability and optimal control on the most demanding terrains.

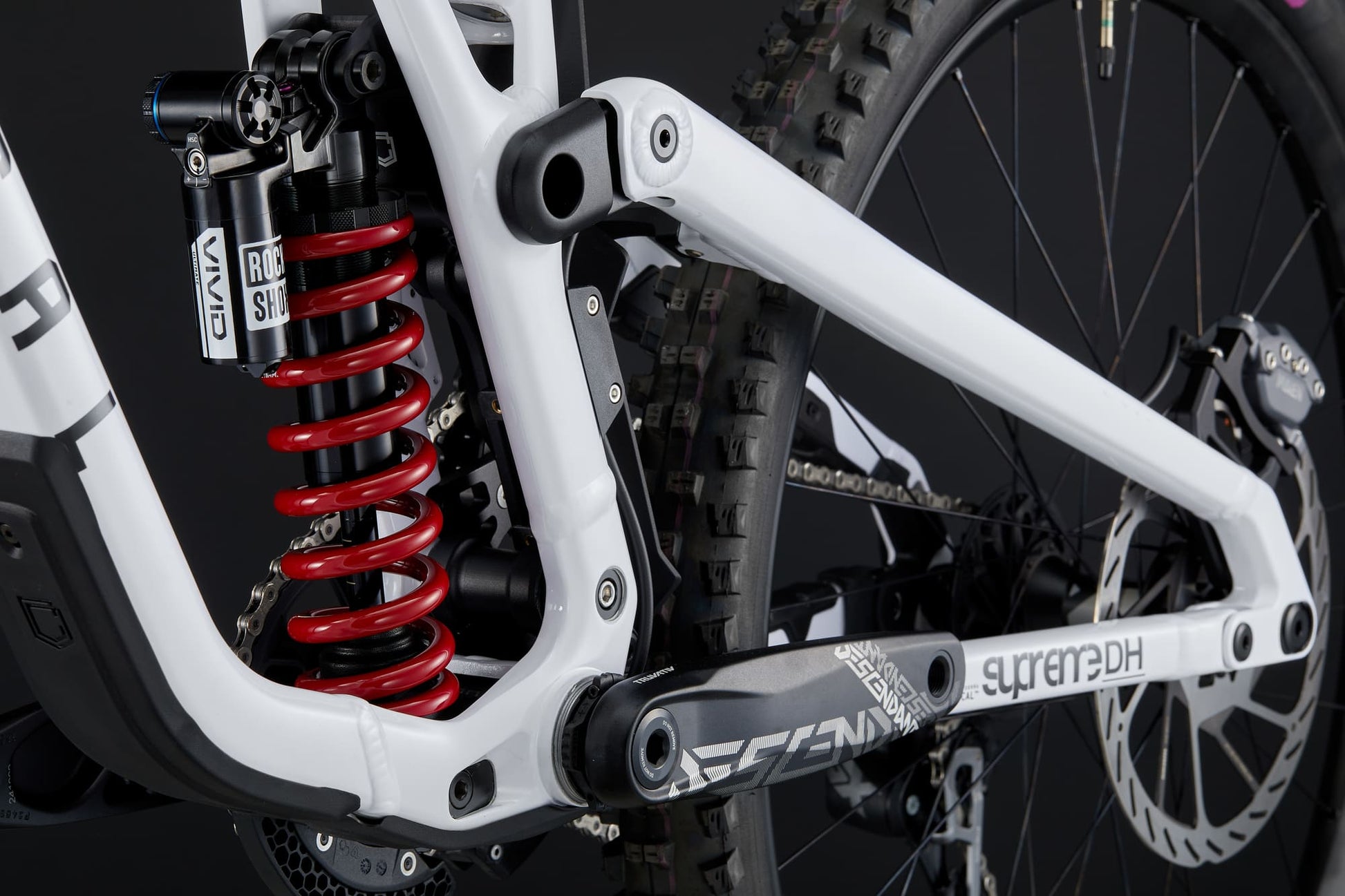

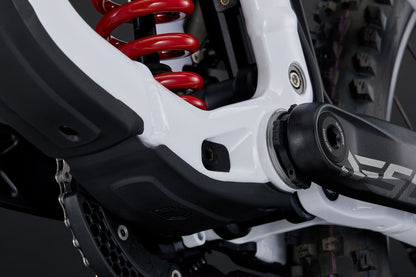

The ROCKSHOX Vivid Coil Ultimate DH shock provides incomparable sensitivity and never heats up whatever the duration of the run or condition of the track.

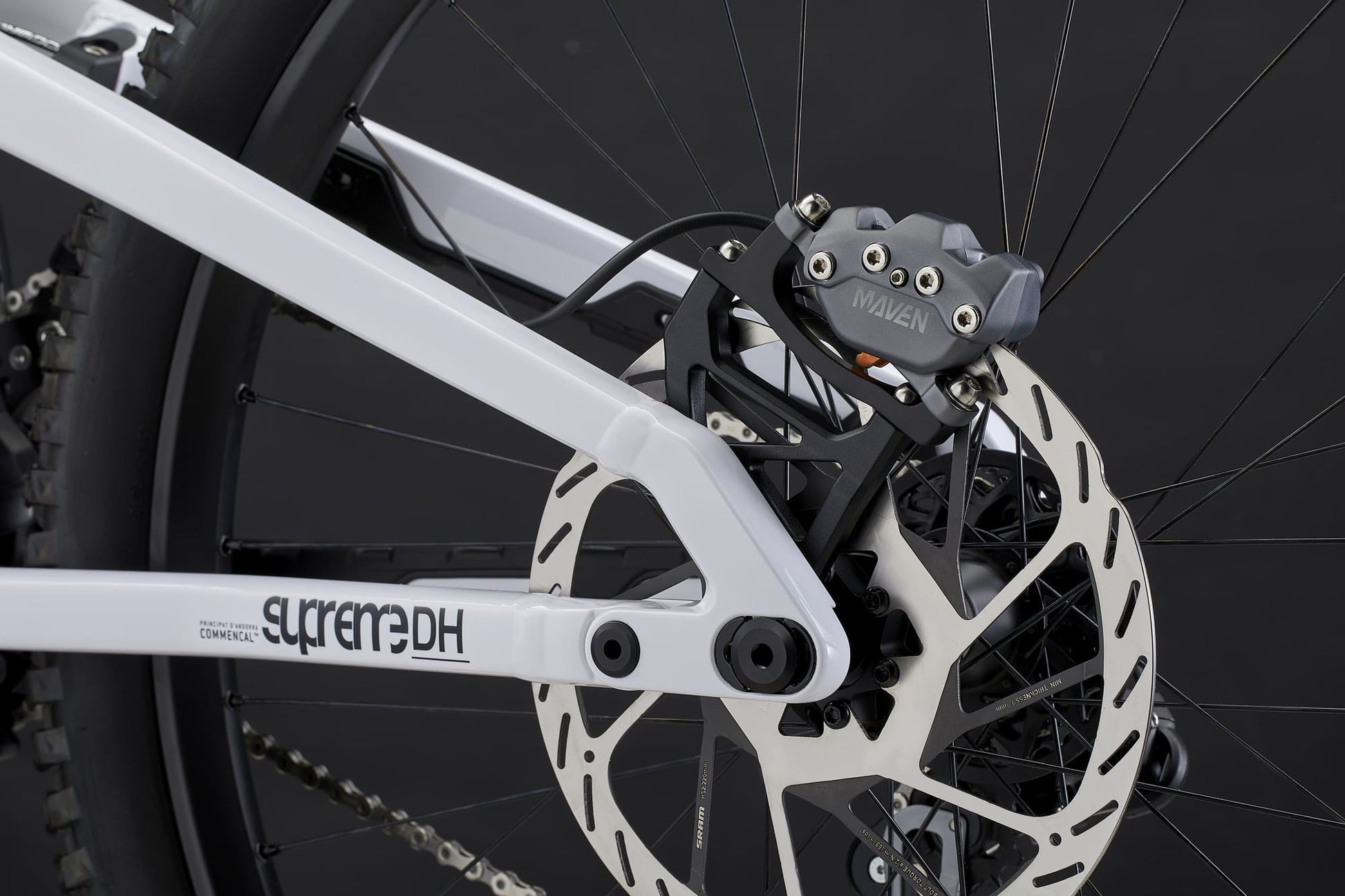

Braking is managed by SRAM with a pair of Maven Bronze. The same as those used by Amaury Pierron when he’s racing World Cups. They are powerful, enduring, progressive, and precise.

DT SWISS wheels with F1900 Classic rims and hubs provide dynamism and reliability.

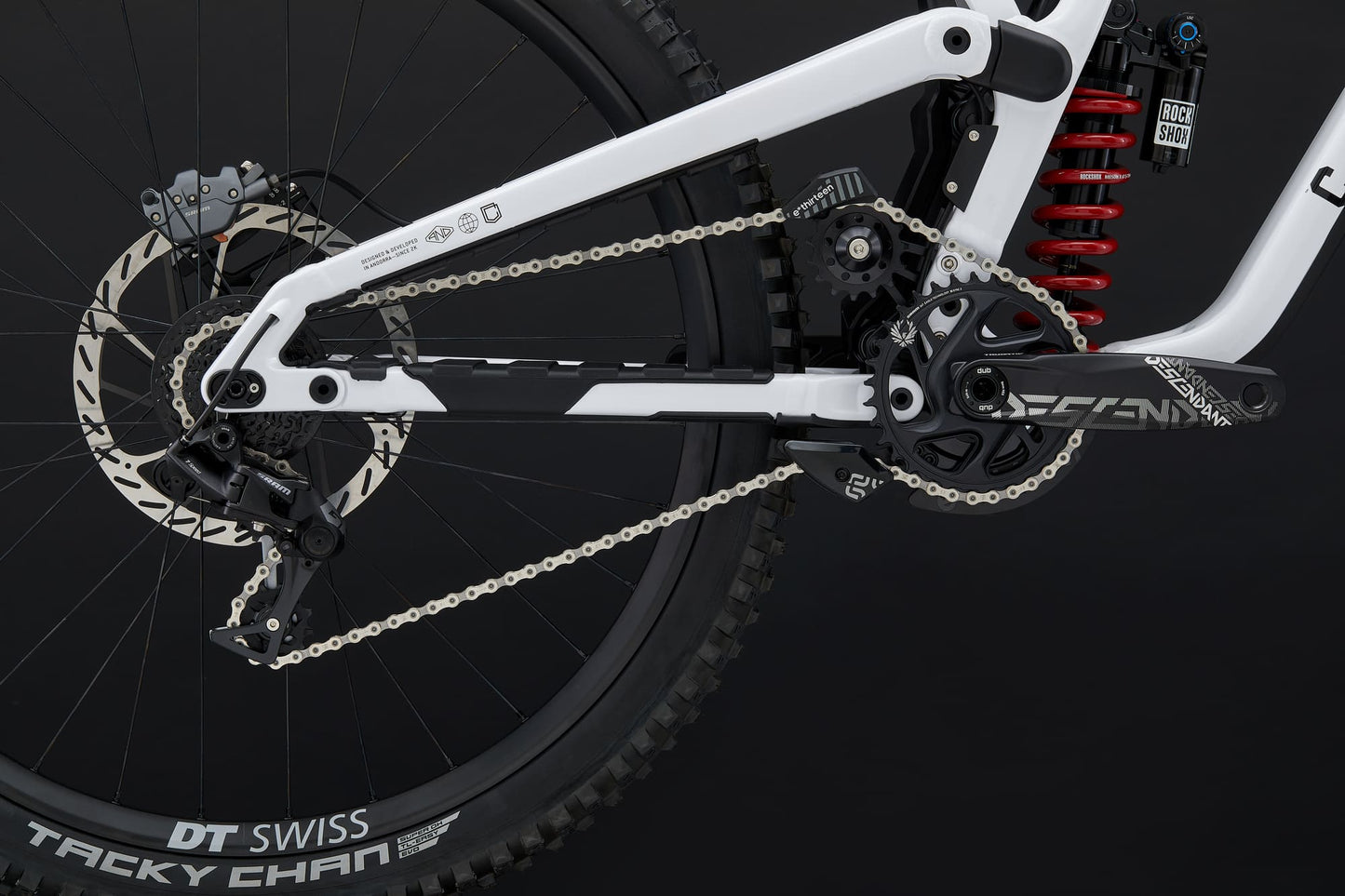

The SRAM GX DH transmission offers ultra-precise gear changes thanks to DH-specific staging.

Finally, the tyres come in the form of the SCHWALBE Tacky Chan with Super Downhill casing and Ultra Soft rubber. They were developed by the COMMENCAL MUC-OFF team to tackle the most demanding tracks on the circuit.

*Please note that bike specs may be subject to change without prior notice.

• Frame

  SUPREME DH V5 29/27, 220 mm travel
  27/29'', Alloy 6066, triple butted tubes, T4, T6.

• Shock

  ROCKSHOX Vivid Coil Ultimate DH
  250 x 75 mm, HSC, LSC, LSR, rebound. Red Coil
  Spring rates: 400lbs on S, 450lbs on M, 500lbs on L, 550lbs on XL

• Fork

  ROCKSHOX Boxxer Ultimate, 203 mm travel
  29'', Charger 3 damper, HSC, LSC, HSR, LSR, Boost (20 x 110 mm), 52 mm offset
  Electric Tall

• Headset

  ACROS ZS56/ZS56
  Alloy cups, sealed bearings

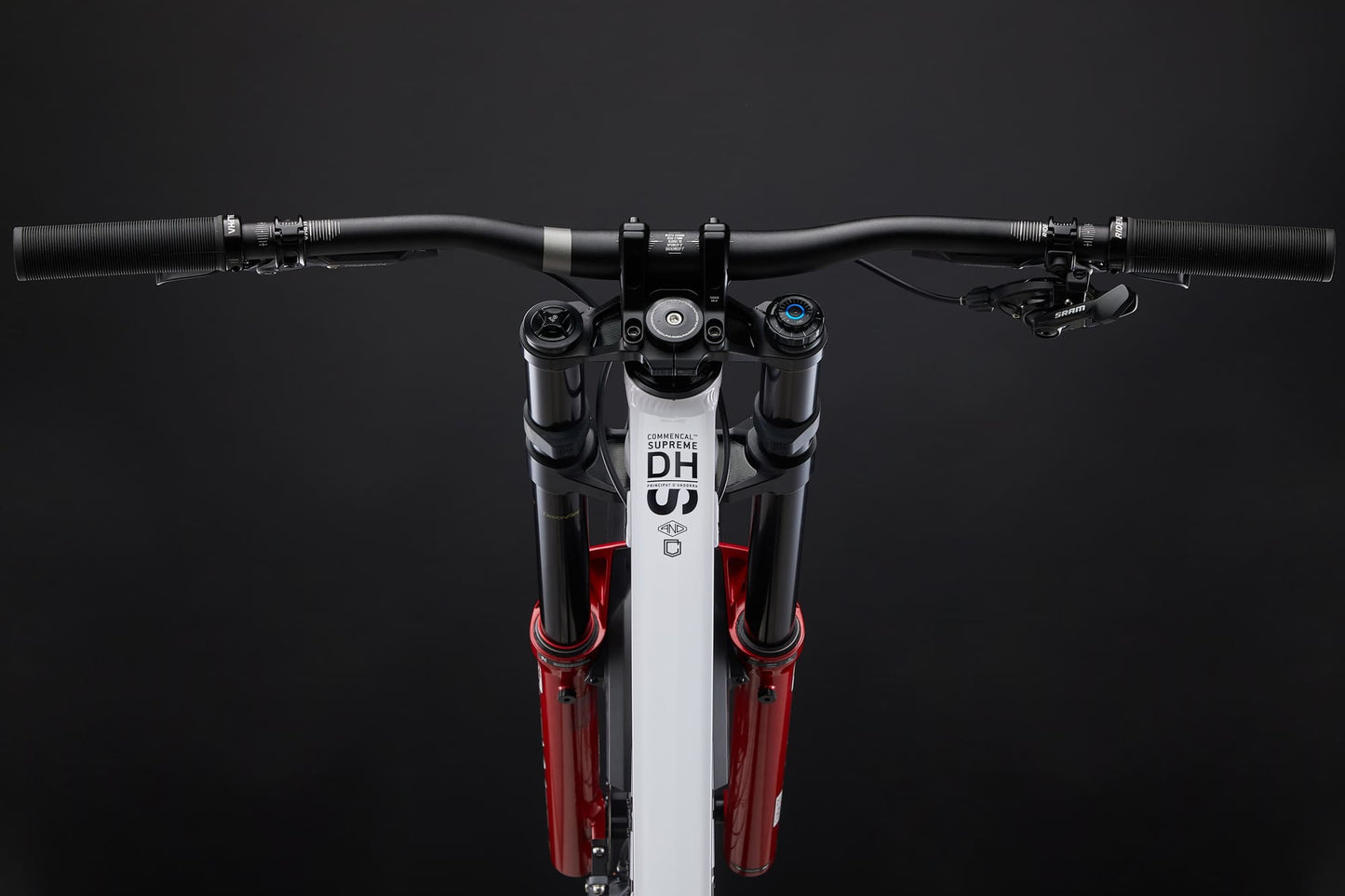

• Stem

  RIDE ALPHA DH
  40 mm extension, 31.8 mm

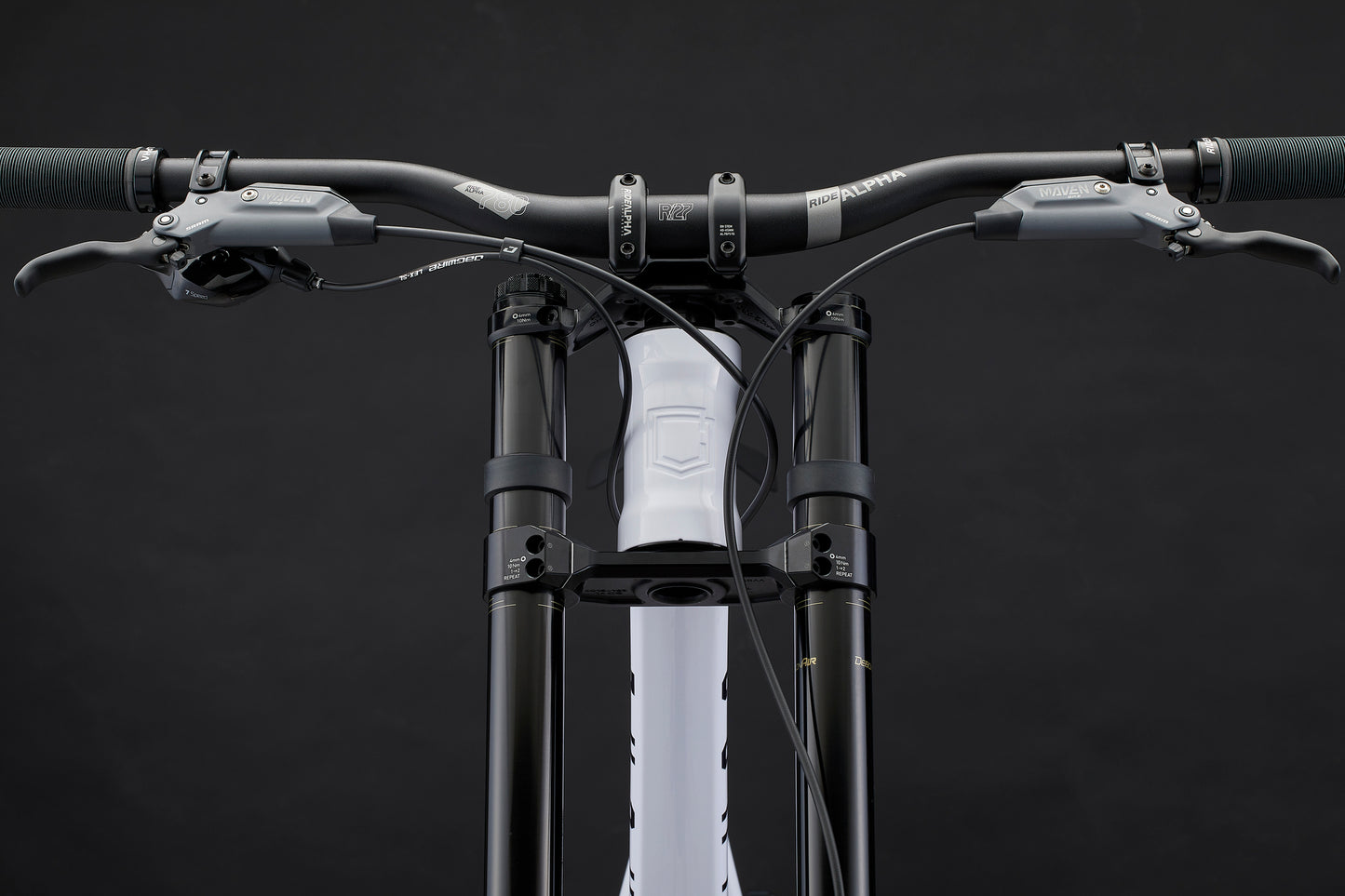

• Handlebar

  RIDE ALPHA
  31.8 mm, 780 mm on S/M/L, 800 mm on XL, rise 27

• Grips

  RIDE ALPHA Mushroom
  132 mm, single clamp, black

• Brakes

  SRAM Maven Bronze, 4 pistons, sintered pads
  Rotors: SRAM HS2 220 mm, 6-bolts, 2.0 mm width

• Shifters

  SRAM GX DH
  7s

• Chain guide

  E13 LG1
  32-34t

• REAR DERAILLEUR

  SRAM GX Eagle
  7s

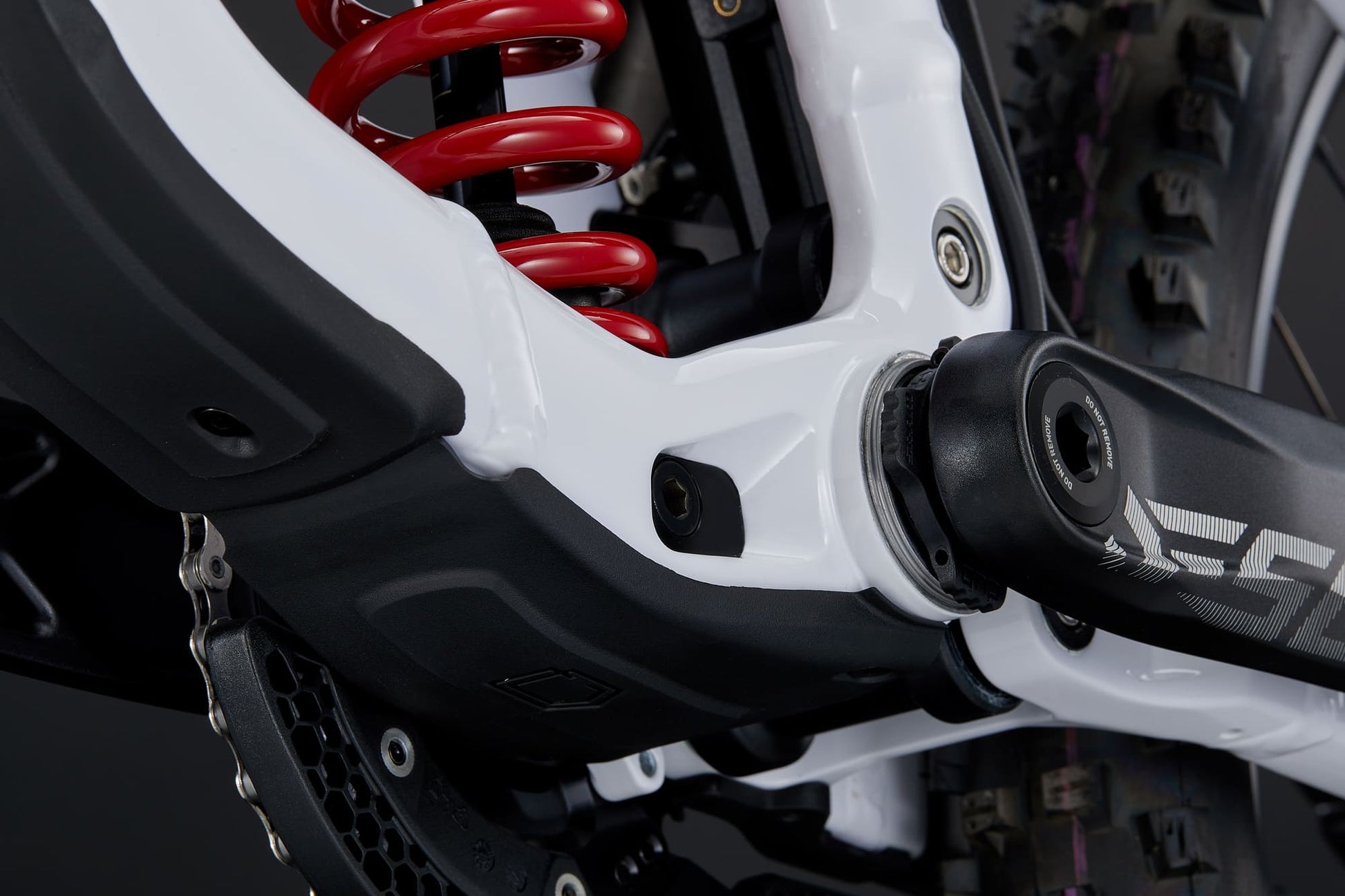

• Bottom bracket

  SRAM DUB
  Pressfit

• Crankset

  SRAM Descendant DH, 165 mm crank arms, DUB
  Chainring: SRAM Descendant DH, 34t

• Chain

  SRAM PC-1130
  11s

• Cassette

  SRAM PG-720 DH
  7s, 11-25t

• Rims

  DT SWISS F1900 Classic
  Rear: 27.5'', 32h, 30 mm inner width, 12 x 157 mm - Front: 29'', 32h, 30 mm inner width, 20 x 110 mm

• Hubs

  Included with wheelset

• Spokes/nipples

  Included with wheelset

• Tyres

  Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
  Rear: 27.5''x2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29''x2.4", Super DH, Addix Ultra Soft, Tubeless Easy

• Seat post

  RIDE ALPHA
  31.6 mm, 250 mm

• Saddle

  FIZIK Gravita Alpaca X5
  130 mm width, S-Alloy rails, Team edition

• Weight

  18,7 kgs - 41,22 lbs
  Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

• Pedals included

  No

• Colour

  Pure White
  Shiny Finish

• Accessories

  Chainstay protector, seatstay protector, fork bumpers, downtube protector, Fox 40 fender
  *Please note that bike specs are subject to change without prior notice
