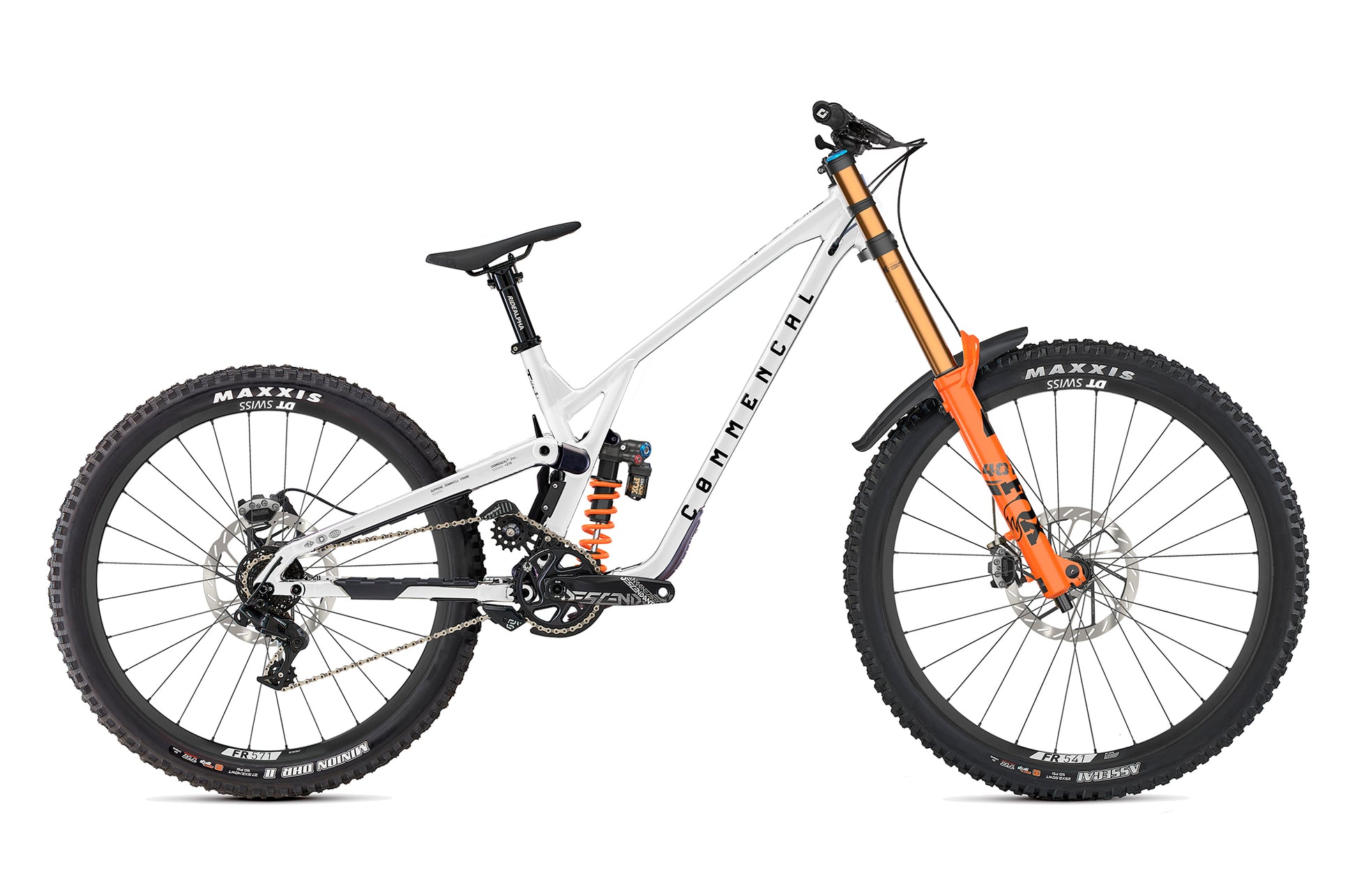

COMMENCAL SUPREME DH V5 SIGNATURE PURE WHITE 2026

COMMENCAL SUPREME DH V5 SIGNATURE PURE WHITE 2026

$11,695.00
$11,695.00
Sale Contact Us
Size

specifications

  • Frame

    SUPREME DH V5, 220 mm travel
    29/27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

  • Shock

    FOX DHX2 Factory
    250 x 75 mm, HSC, LSC, HSR, LSR
    425lbs on S, 475lbs on M, 525lbs on L, 575lbs on XL

  • Fork

    FOX 40 Factory, 200 mm
    29", Grip X2, HSR, LSR, HSC, LSC, Boost (20 x 110 mm), 52 mm offset

  • Headset

    ACROS ZS44/ZS56
    Alloy cups, sealed bearings

  • Stem

    BURGTEC MK3 DH
    45 mm extension, direct mount, 31.8 mm

  • Handlebar

    BURGTEC Ride Wide
    31.8 mm, 800 mm width, 30 mm rise, Alloy 6061

  • Grips

    ODI Longneck V2.1
    Single clamp, black

  • Brakes

    SRAM Maven Silver, 4 pistons, resin pads
    Rotors: SRAM HS2 220 mm, 6-bolt, 2.0 mm thickness

  • Shifters

    SRAM GX DH
    7s

  • Chain guide

    E13 LG1
    32-34t

  • REAR DERAILLEUR

    SRAM GX DH
    7s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM Descendant DH, 165 mm crank arms, DUB
    Chainring: SRAM Descendant DH, 34t

  • Chain

    SRAM PC-1110
    11s

  • Cassette

    SRAM PG-720 DH
    7s, 11-25t

  • Rims

    Rear: DT SWISS FR571 - Front: DT SWISS FR541
    Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width

  • Hubs

    DT SWISS 350
    Rear: 32h, sealed bearings, 12 x 157 mm, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm

  • Spokes/nipples

    DT SWISS Competition
    Straightpull

  • Tyres

    Rear: MAXXIS Minion DHR II - Front: MAXXIS High Roller III
    Rear: 27.5x2.50WT 3C MaxxTerra / DH Casing / TR - Front: 29x2.50WT 3C MaxxGrip / DH Casing / TR

  • Seat post

    RIDE ALPHA
    31.6 mm, 250 mm length

  • Saddle

    FIZIK Gravita Alpaca X5
    S-Alloy rails, Team edition

  • Weight

    - kg / - lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Pure White
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, shuttle pad, fork bumpers, FOX 40 fender

Bike specifications are subject to change without notice.

View full details
