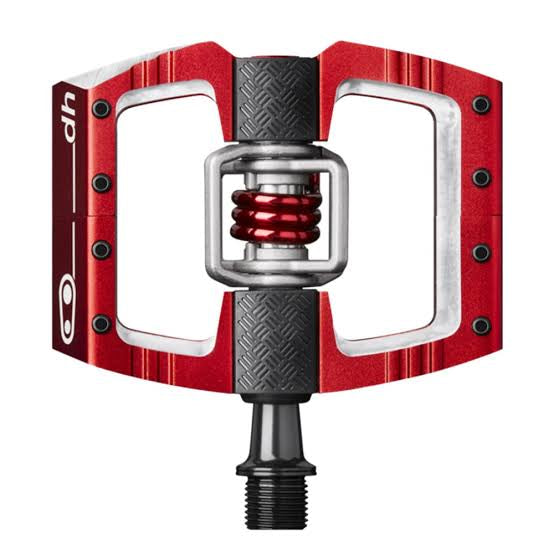

Crankbrothers Pedal Mallet DH Red

Crankbrothers Pedal Mallet DH Red

$285.00
$285.00
Sale Sold out

The luxury mallet for all uncompromising performance riders. Optically and qualitatively at the highest level, these pedals will ensure long bike pleasure.
Crankbrothers has also contributed to your grandiose development in this pedal to give the performance drivers a pedal that is extremely resilient and at the same time looks really cool, thanks to the milled aluminum pedal body.

This pedal impresses with an excellent binding of the pedal to the boot. In addition, the hold is also very good, if you are not clicked on the road. Around the click mechanism, a generous clearance was left, so that mud and mud can hardly settle. Improved seals ensure longevity.

Technical Information:

Material:aluminum (6061-T6)
Axle Material:steel (scm435 CrMo)
Bearing:Igus LL bushings (inner), Enduro cartdige (outer)
Release Angle:15° or 20° (depending on how the cleats are mounted)
Number of pins per pedal:16
Pin Height:8mm
Pedal Center to Crank Arm Distance:57mm

Features:

  • forged steel axle
  • 17-4PH stainless steel blades
  • 300 stainless steel spring
  • 57 mm Q-factor for more control on narrow trails
  • large, concave platform for better hold
  • "Traction Pads" optimize the connection between the sole and the pedal body
  • grooved body for more grip when clicked out
  • bevelled edges reduce risky contacts with stones
  • premium bearing, double sealed
  • adjustable float and release angle
  • four-sided entry
  • excellent self-cleaning
  • 8 pins per side (replaceable)
  • aluminium hexagonal end caps
  • no rider weight limit

Manufacturer Numbers:

black:16094
red:16095

Contents:

  • 1 x pair of crankbrothers Mallet DH pedals
  • 1 x pair of crankbrothers Premium Cleats (brass)


Weight:

  • black/universal: 479 g (pair)
View full details
