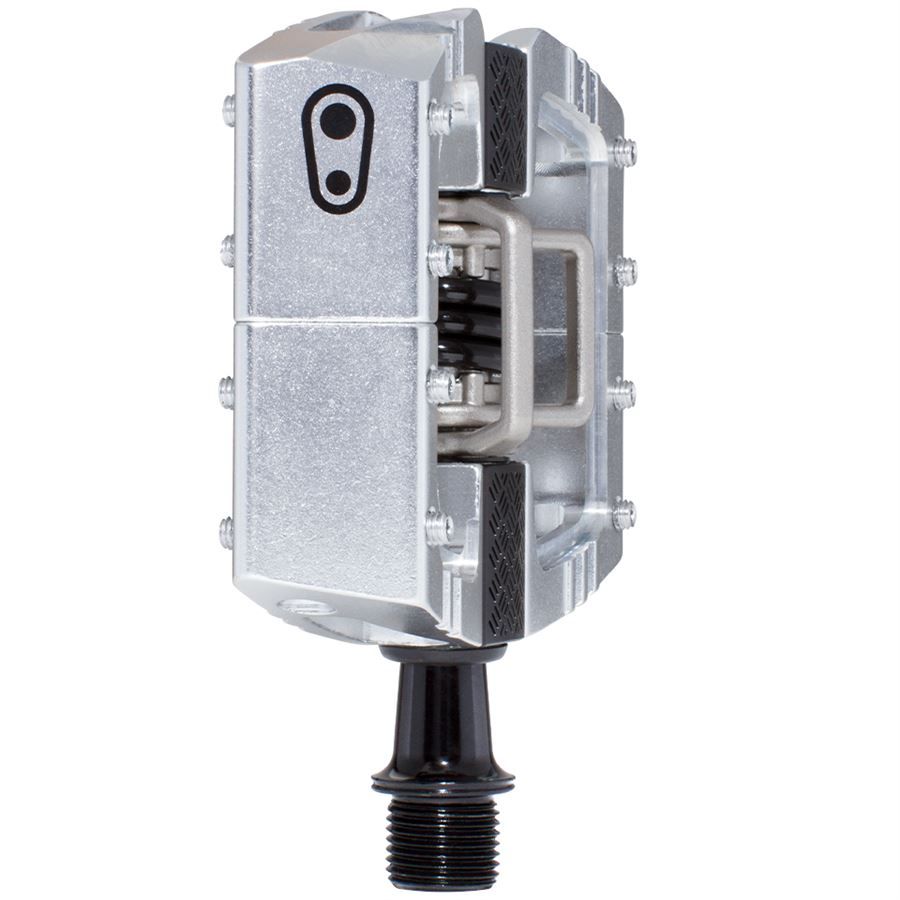

Crankbrothers Pedals Mallet DH Polish Silver

The mallet for all uncompromising performance riders. Visually and qualitatively at the highest level, these pedals will ensure long biking pleasure. Crankbrothers has also incorporated their grandiose development into this pedal in order to be able to offer performance riders a pedal that is extremely resilient and at the same time looks really cool thanks to the milled aluminum pedal body.

This pedal impresses with excellent pedal-to-shoe binding thanks to the concave pedal shape. In addition, the grip is also very good when you are not clipped in when you are out and about. A generous amount of space has been left around the click mechanism so that mud and slush can hardly settle. The pedal corners are chamfered so that the pedal slides off better when it comes into contact with stones. Improved seals ensure durability.

The revised 5mm longer axle is 50% more durable than the original and the new seal design ensures a long service life. 8 interchangeable, adjustable screw pins per tread ensure the best grip even when unclipped.


Technical specifications:

Area of intended use : Enduro, Downhill and All Mountain
Material Pedal axle: forged SCM 435 chromoly steel with 57 mm Q-factor
Material Pedal Body: Forged 6061-T6 aluminum
Pedal wings: steel, rustproof
Material pins: not specified
Overall height: 11 to 13 mm
bearing : Igus LL plain bearings / Enduro Bearings industrial bearings
Seal: double contact seal
Pins: 8 per side, adjustable
Nib: 300 stainless steel nib
Colour: Limited Edition | Silver
Release angle: 15° or 20° depending on cleat mounting
Freedom of movement: approx. 6°


Weight according to the manufacturer: 479g (pair)

We advise to use some form of loctite on your cleat bolts before screwing into your shoes, helps prevent possible issues down the track
