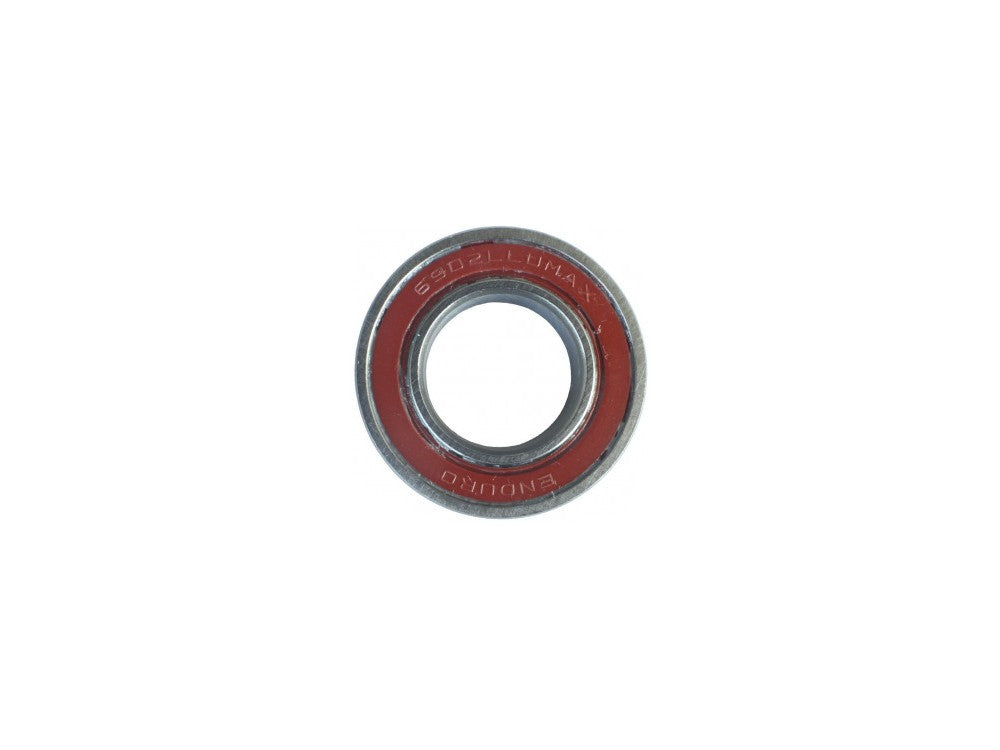

Enduro Bearing MAX | 61902/6902 LLU | 15 x 28 x 7 mm

The MAX bearings from Enduro Bearings were specially designed for use in pivot points such as B. can be found in the rear of fully developed. Due to the special, full-spherical design, the load-bearing capacity is increased by around 35-40%, as can be found in conventionally designed deep groove ball bearings.
The bearing groove is deeper than usual to better absorb lateral forces. The LLU seals mounted on both sides increase the service life by reliably keeping dirt and water out.


The main features:
- LLU seal on both sides (labyrinth seal)
- Almagard Extra High Pressure Grease


Technical specifications:

Material: steel
Bearing type: deep groove ball bearing 61902/6902
Dimension AØxIØxB: 28x15x7 mm
Seal: LLU - double-sided seal
Version: full spherical, MAX Load
static load: 696lbs (315.7kg)
Silver

Weight according to the manufacturer: 15.9g

Scope of delivery: 1x Enduro bearings ball bearing MAX | 61902/6902 LLU | 15 x 28 x 7 mm

Note: When pressing in ball bearings, make sure that the bearing is always pressed in via the outer ring, which is also the seat of the bearing.
Example hub: The hub body bearings are pressed in there via the outer ring. The bearing may therefore only be pressed in via the outer ring. Never over the inner ring.
