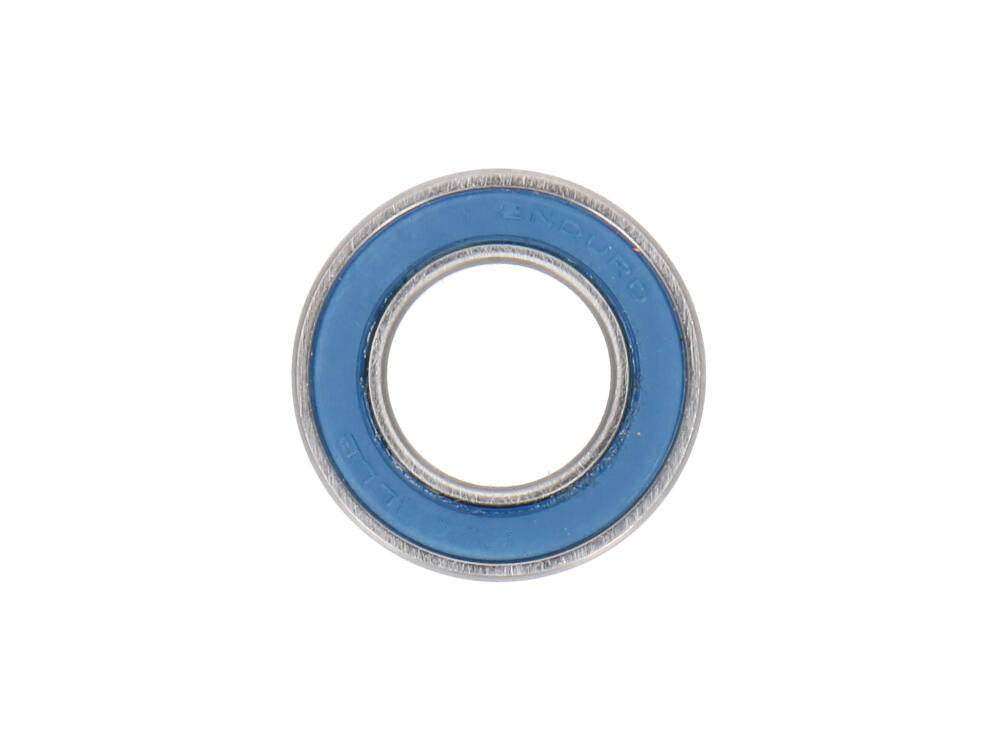

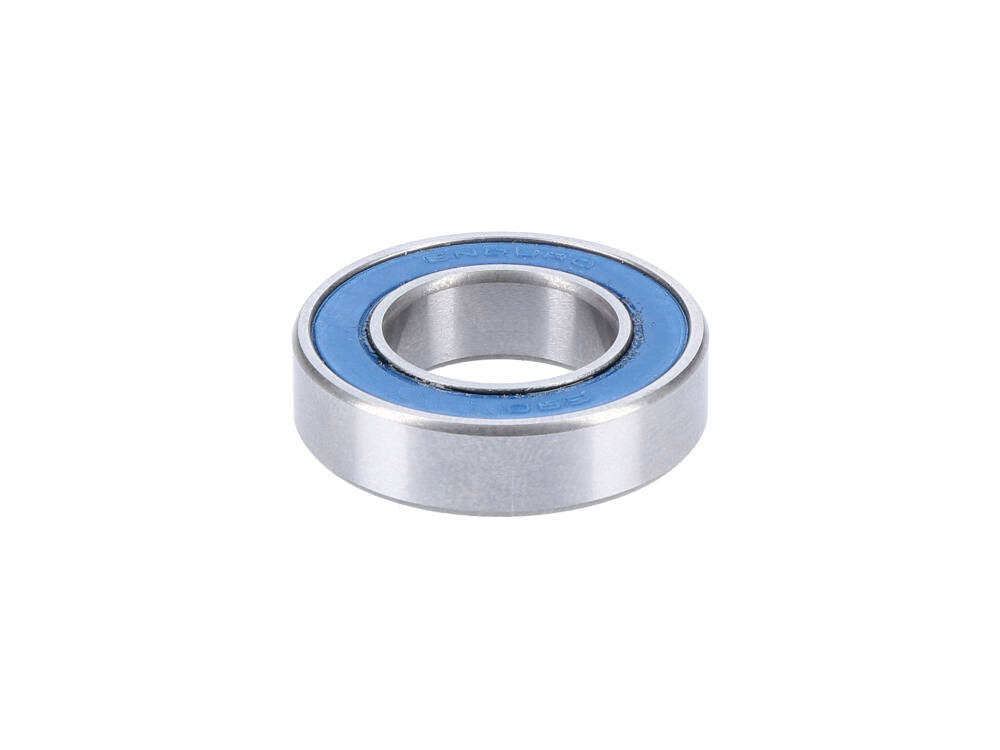

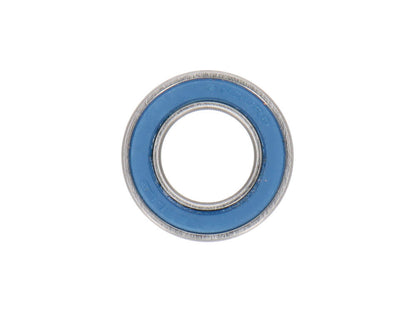

ENDURO BEARINGS | 61902/6902 LLB | 15 x 28 x 7 mm ABEC-3
ENDURO BEARINGS | 61902/6902 LLB | 15 x 28 x 7 mm ABEC-3
Couldn't load pickup availability
ENDURO BEARINGS ball bearings | 61902/6902 LLB | 15 x 28 x 7 mm
High quality 52100 bearing steel, grade 10 chrome steel balls and an excellent, easy-running LLB seal.
Enduro ABEC-3 bearings start with high-precision grade 10 balls that are ground to a roundness of 10 / 1,000,000 ?. This is twice as round as the industry standard for ABEC-3 bearings. The bearing rings are made from high quality 52100 bearing steel. After the base material has hardened to Rockwell HRC 64, the bearing rings are manufactured, precisely ground and the raceway is polished to a high gloss in order to achieve the ABEC-3 standard and ensure quiet running.
Technical specifications:
Material: 52100 bearing steel
Bearing type: deep groove ball bearing 61902/6902
Dimensions IØxAØxB: 15x28x7 mm
Seal: LLB - seal type with double lip and light contact, running in a groove in the sense of a labyrinth seal
Silver
Weight according to the manufacturer: -
Weight weighed: 15.6g
Scope of delivery: 1x ENDURO BEARINGS ball bearing stainless steel | 61902/6902 LLB | 15 x 28 x 7 mm
Note: When pressing in ball bearings, make sure that the bearing is always pressed in via the outer ring, which is also the seat of the bearing.
Example hub: The hub body bearings are pressed in there over the outer ring. The bearing may therefore only be pressed in via the outer ring. Never over the inner ring.
