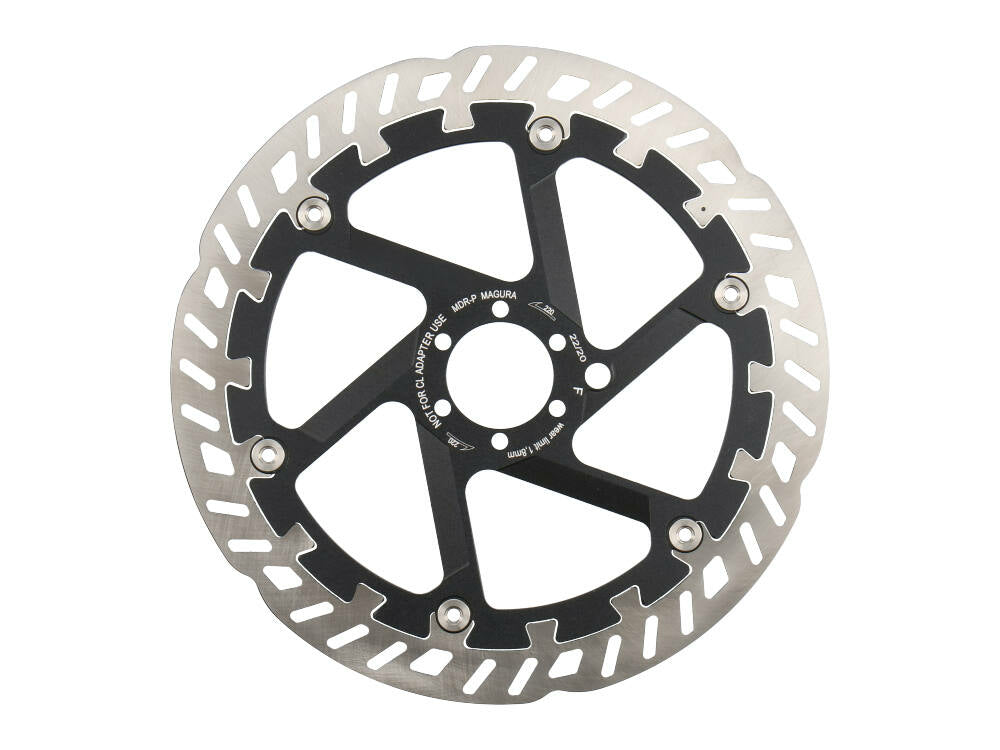

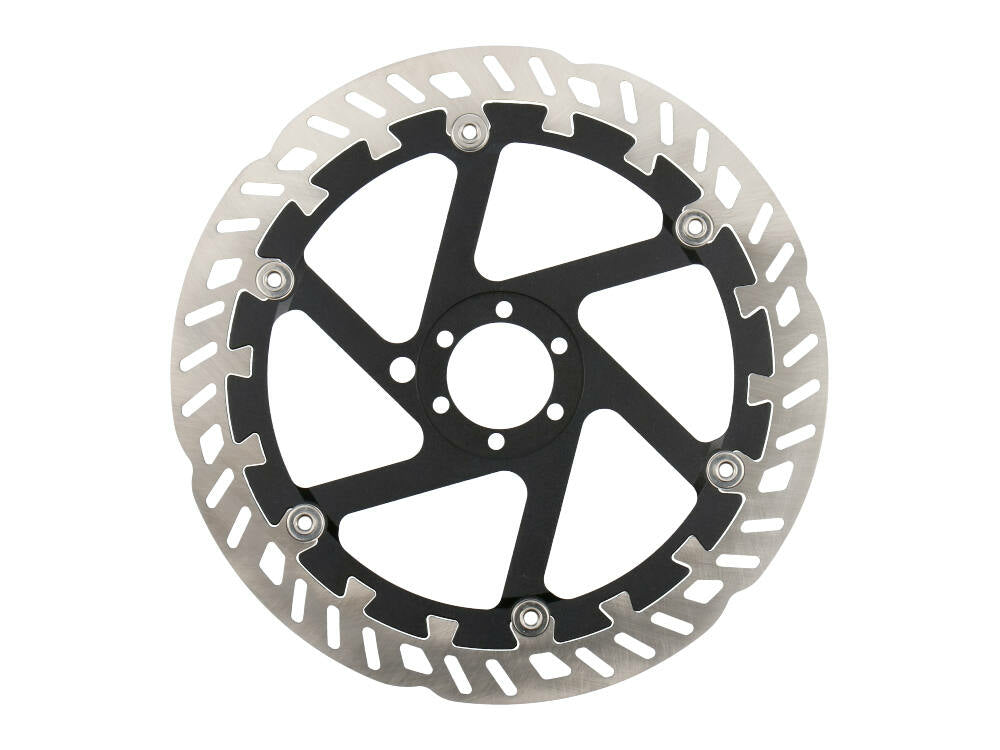

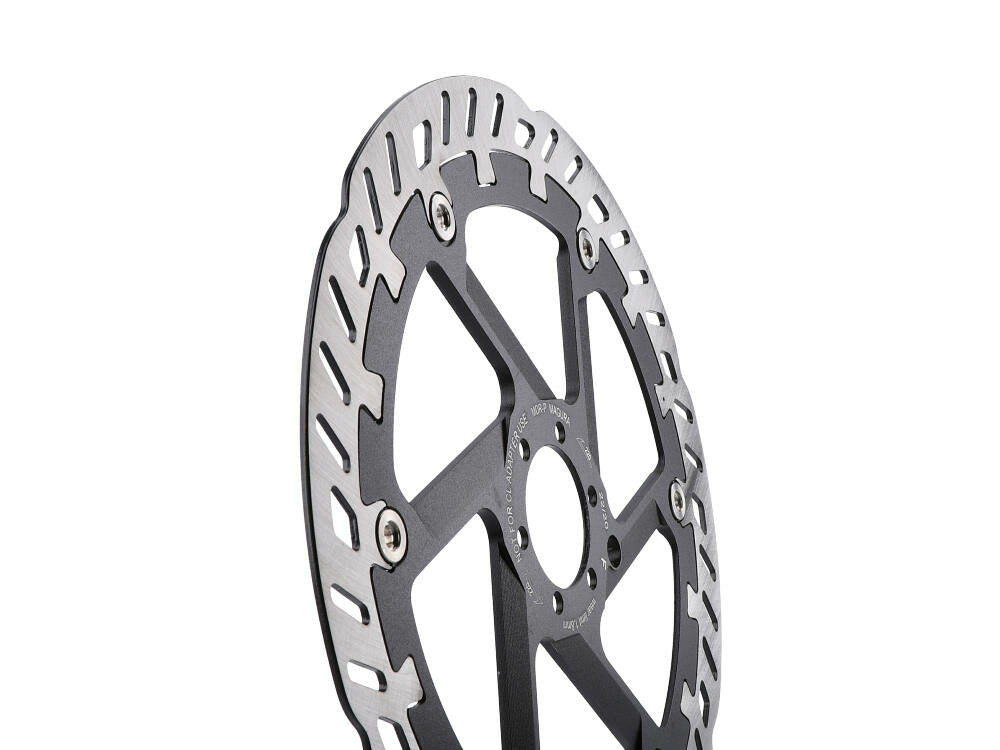

Magura Rotor MDR-P 6-hole Rotor

The light support provided by e-bikes puts a smile on your face every day, but at the same time increases the weight of your bike. Getting up the mountain is much more fun - downhill, the more mass and higher speeds bring new challenges for people and material. In order to better meet the special requirements of e-bikes, Magura offers components specially optimized for this purpose.

With the MDR-P, MAGURA presents a brake disc for performance-oriented riders and tough applications - from downhill to e-bikes to heavy cargo bikes. The two-part disc saves weight compared to the MDR-C and is also available for the first time with a diameter of up to 220 mm. A special feature of the two-part disc is the patented toothing of the outer and inner ring (Dovetail Interlink technology). The toothing enables additional support on the inner ring when the outer ring expands. In contrast to floating discs, the torque is transmitted over the entire surface instead of just via the rivets. The result is an increased stiffness of the brake disc and a particularly direct heat dissipation under constant load. Thanks to the new technology, the MDR-P is the strongest brake disc in the Magura portfolio and still offers low weight and reduced vibration, perfect for e-bikes and gravity use.

ATTENTION: The brake disc must not be used with Centerlock adapters!


Technical specifications:

Material friction ring: steel
Material spider: aluminum
Execution: two-part
Disc mount: 6-hole (IS)
Thickness: 2.0mm
Friction ring width: 20.0 mm
Recommended brake pads: metal or resin
Technology / Features: MDR-P
Color: black, silver

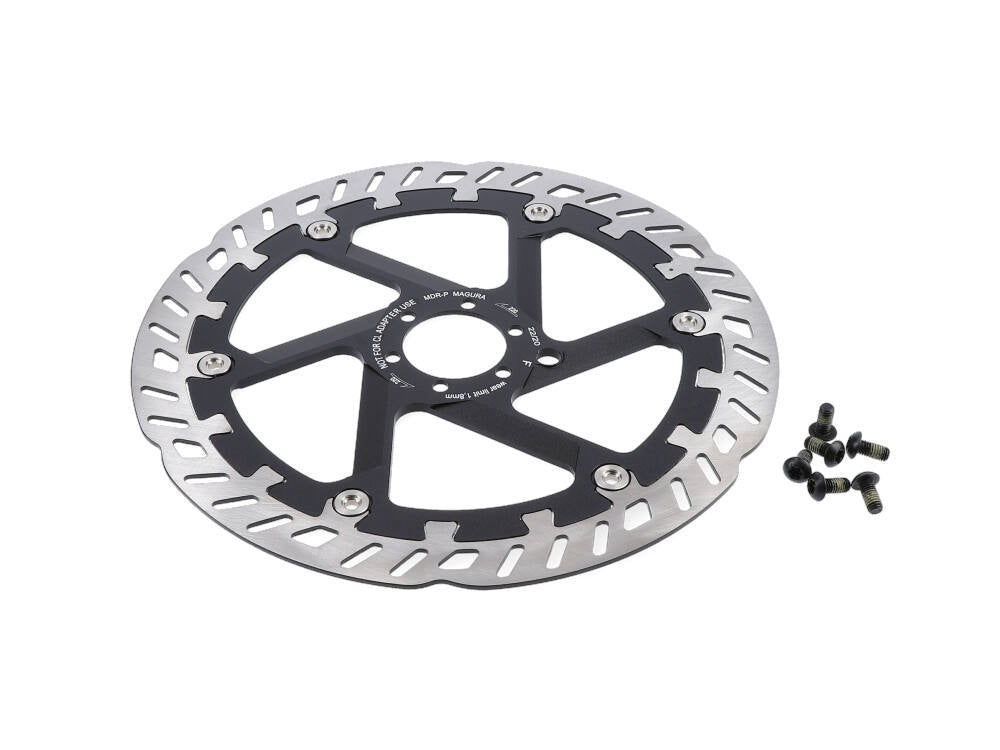

Scope of delivery:
1x MAGURA brake disc MDR-P 6-hole
6x fastening screw

Weight according to the manufacturer:

• 216g for 203mm
• 241g for 220mm
