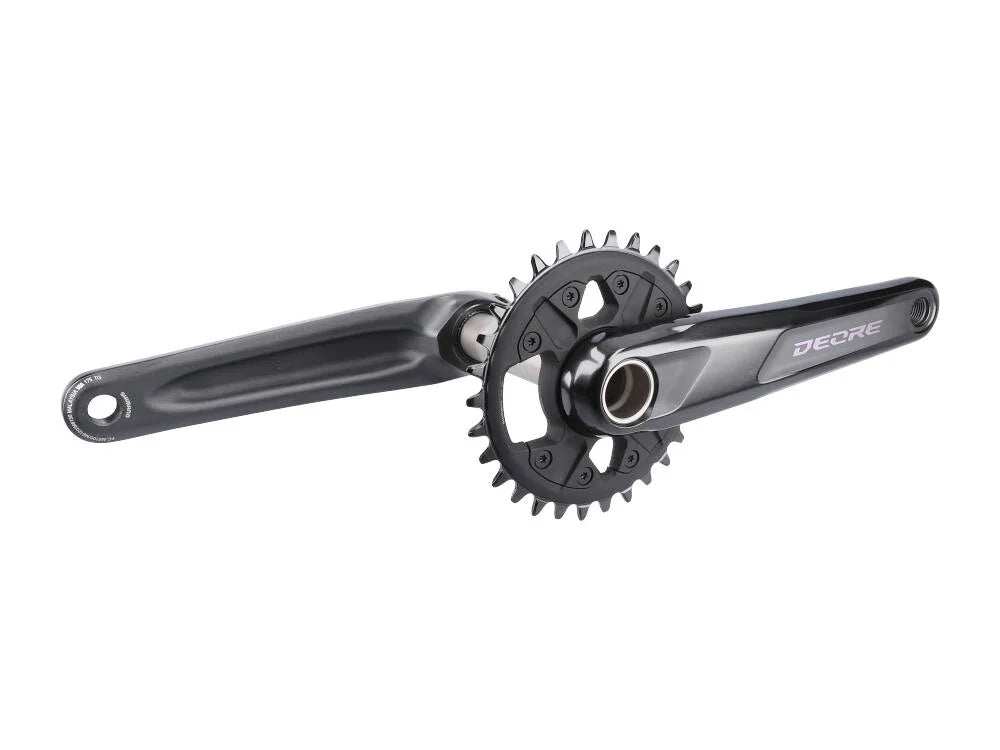

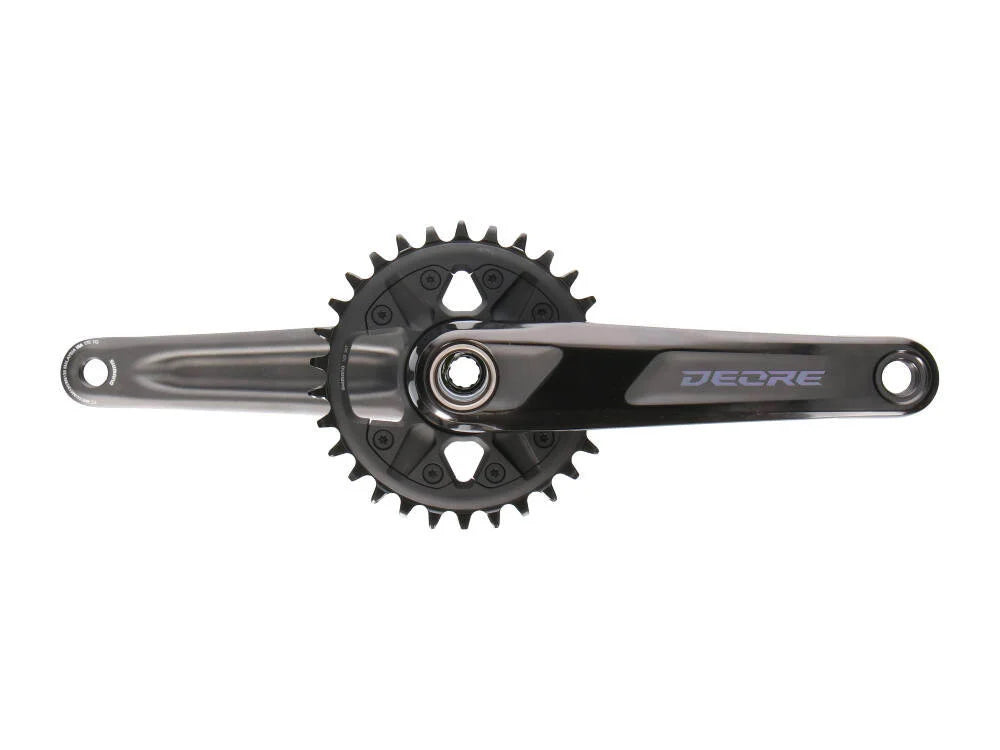

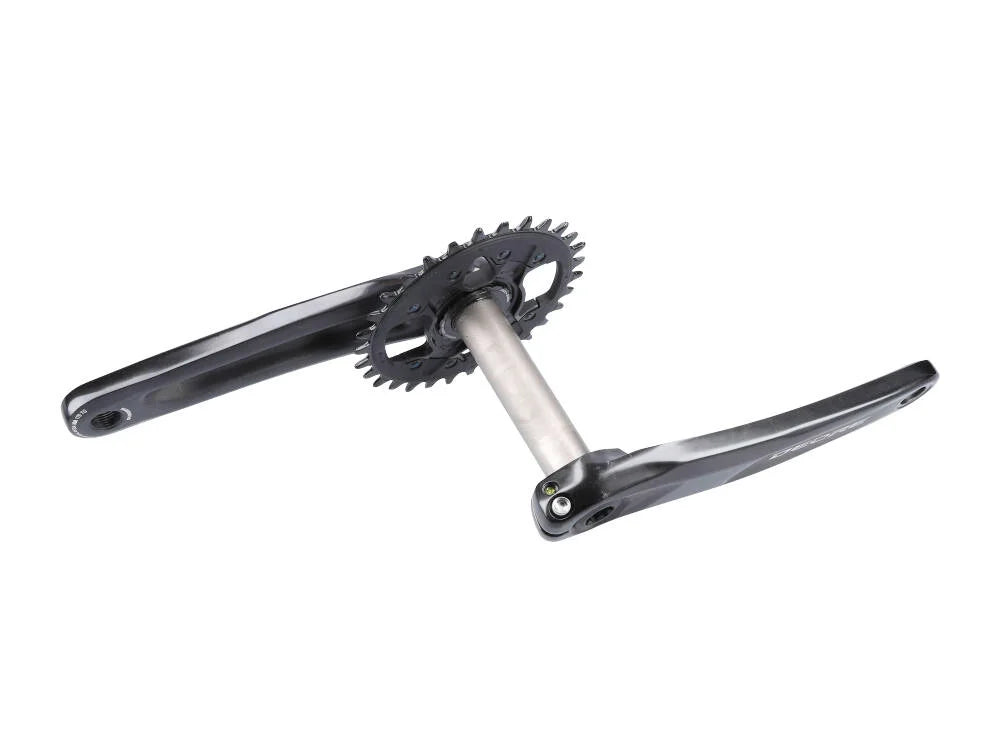

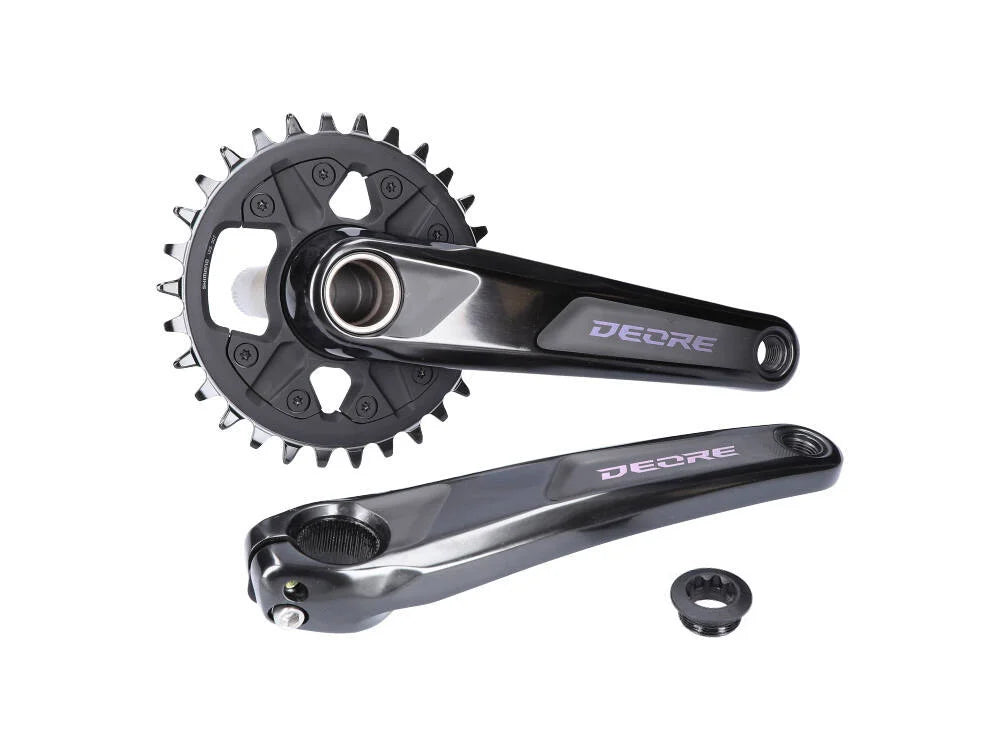

Shimano Deore Crank Direct Mount 1x12-speed FC-M6120-1, 165 mm 32 Teeth

A 12-speed drive for the masses. With the Deore M6100, Shimano offers high-end technology and the range of top MTB groups at an entry-level price. The only compromises have to be made in terms of material and details.

The Deore FC-M6100 crank has been completely redesigned by Shimano. However, the Deore crank also uses the tried-and-tested Hollowtech-2 technology with a 24-millimeter crankshaft. Just like the XT and XTR top cranks, the Deore crank is also equipped with direct-mount chainrings. The special DCE+ tooth profiles of the chainrings ensure that the chain runs better and holds better. In combination with the Hyperglide+ chain, an extremely efficient and low-vibration drive is achieved. The crank is available with 30 or 32 teeth.


Technical data:

Application: Cross Country, Marathon, Tour, All Mountain, Enduro
Crank arm material: Aluminum
Crankshaft material: Steel
Chainring material: Steel/glass fiber reinforced plastic
Crankshaft diameter: 24 mm
Crank lengths: 165 mm
Spider/chainring mount: Shimano Direct Mount
Chainring: 32 teeth
Q factor: 178 mm
Chain line: 55 mm
Rear triangle compatibility: 148 mm BOOST
Bottom bracket compatibility: BB-MT800-PA (Press Fit 89.5 mm or 92 mm), BB-MT800 BSA (68 mm or 73 mm)
Chain compatibility: Shimano 12-speed
Colour / finish: black anodized
Decal colour: oilslick

Weight according to manufacturer: 802g
