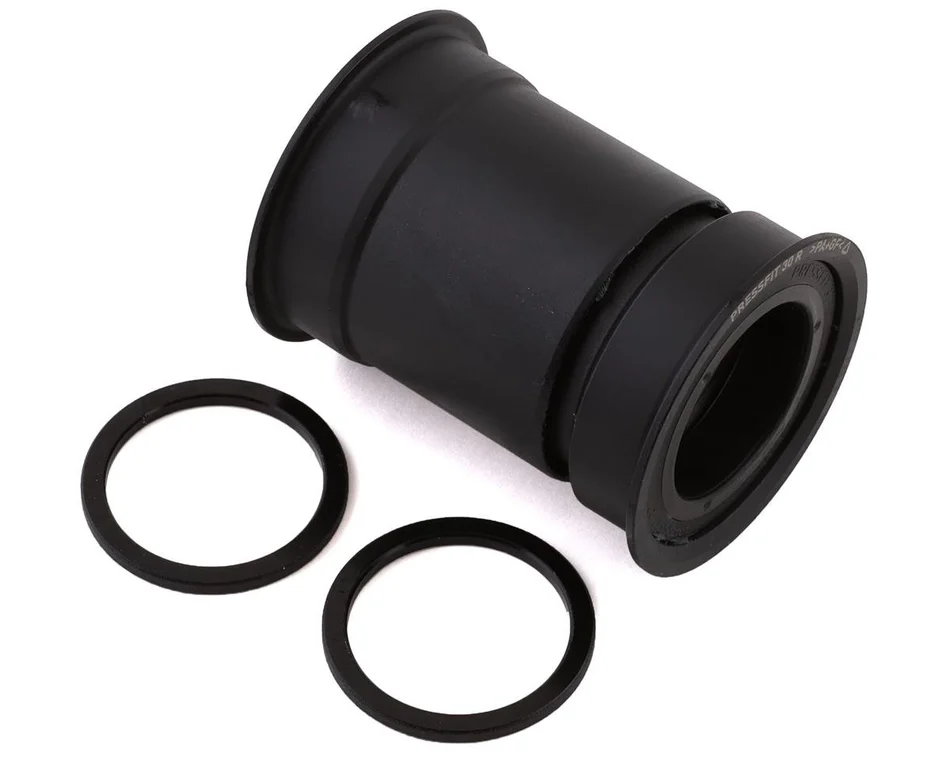

Sram PressFit 30 Bottom Bracket

PressFit 30 Bottom Bracket

We at SRAM saw the opportunity to make a better press fit system where all the best from BB30 and PressFit bottom brackets would be combined into one captivating package. PressFit 30 will feature an integrated seal, pre-assembled into the cups, to further prolong bearing life. The key difference with PressFit 30 is how the bearings are fitted into the frame. Bearings are housed in nylon cups which will be pressed into the frames bottom bracket shell. This bottom bracket is designed for 30mm spindle cranksets.

Frames will need a 46mm inner-diameter bottom bracket shell to accommodate this system.

• Easy installation
• PressFit cups for lighter weight
• Narrow Q-factor and more ankle clearance
• Integrated gutter seal to prolong life
• Integrated adjuster
• PressFit 30 bottom bracket 68-92 (BBT03665)
• 30mm spindle diameter
• Wider PressFit 30 bottom bracket to accomodate wider bottom bracket specifications.

Model ID: BB-PF30-B2

00.6418.009.000
