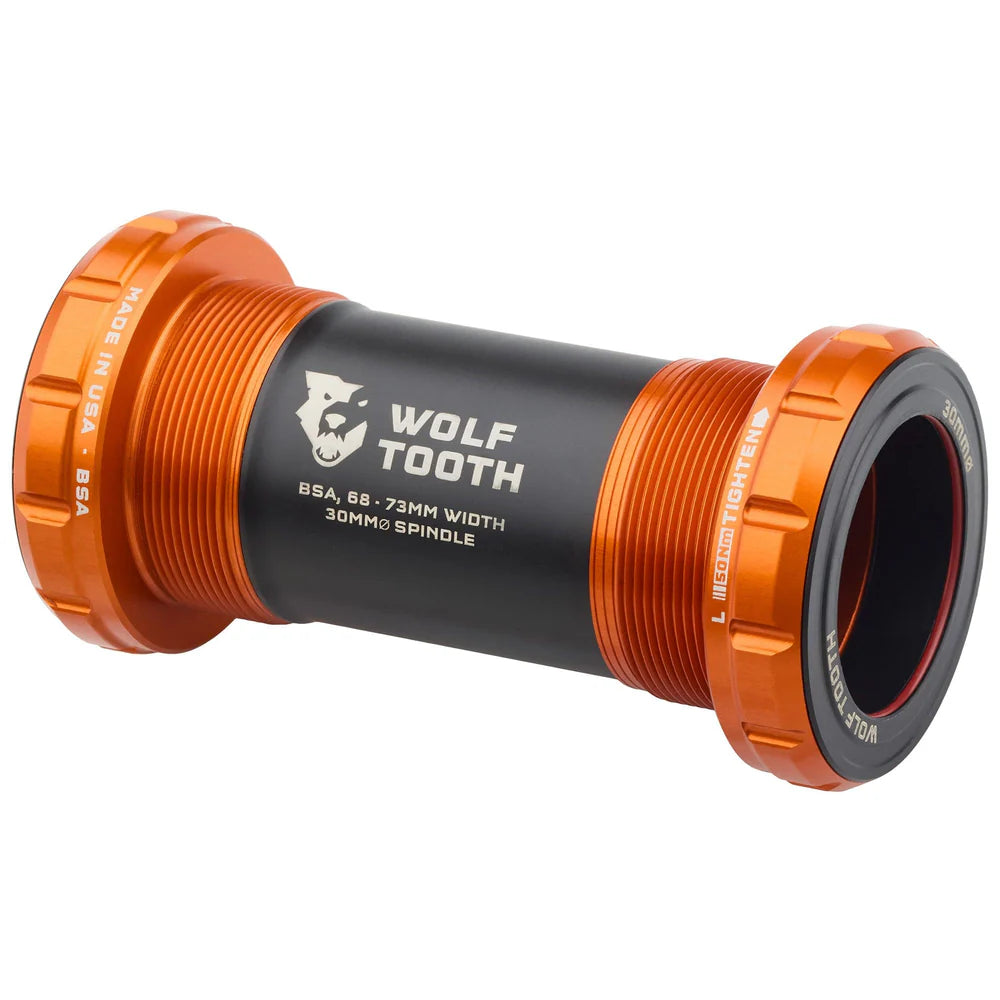

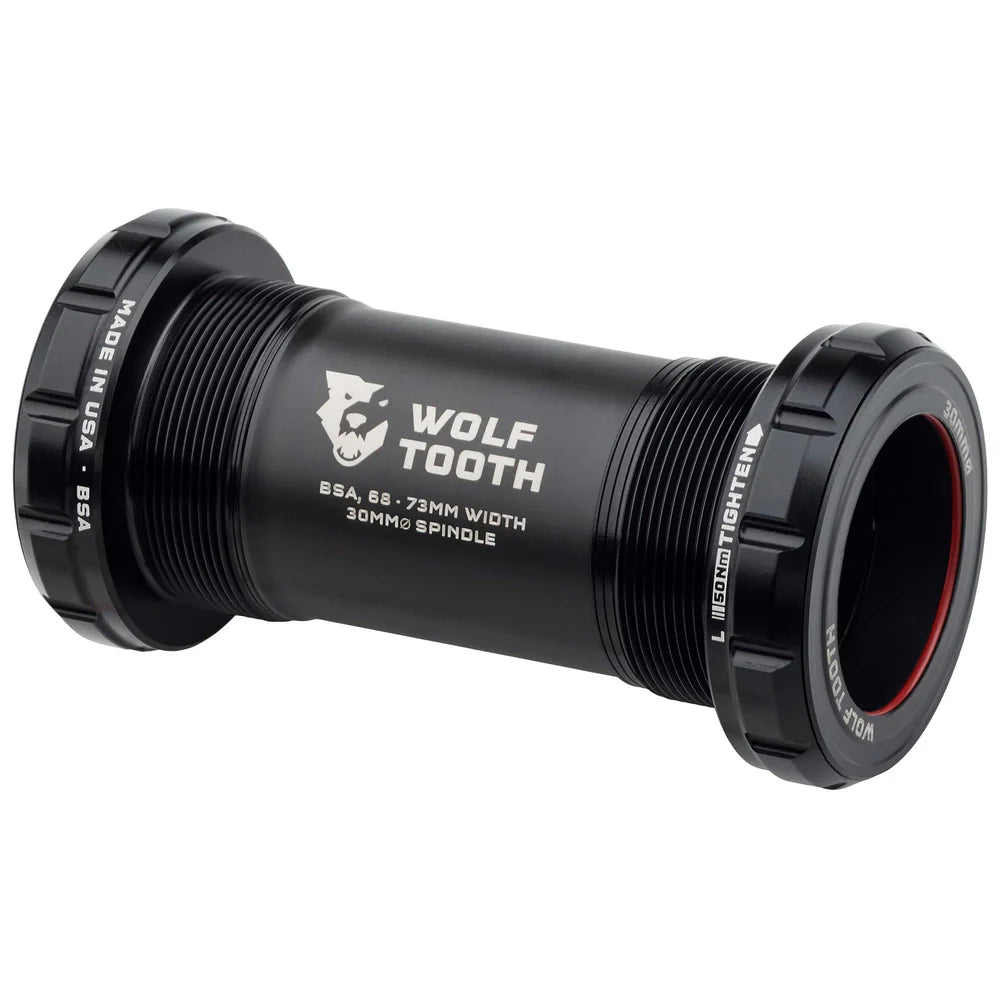

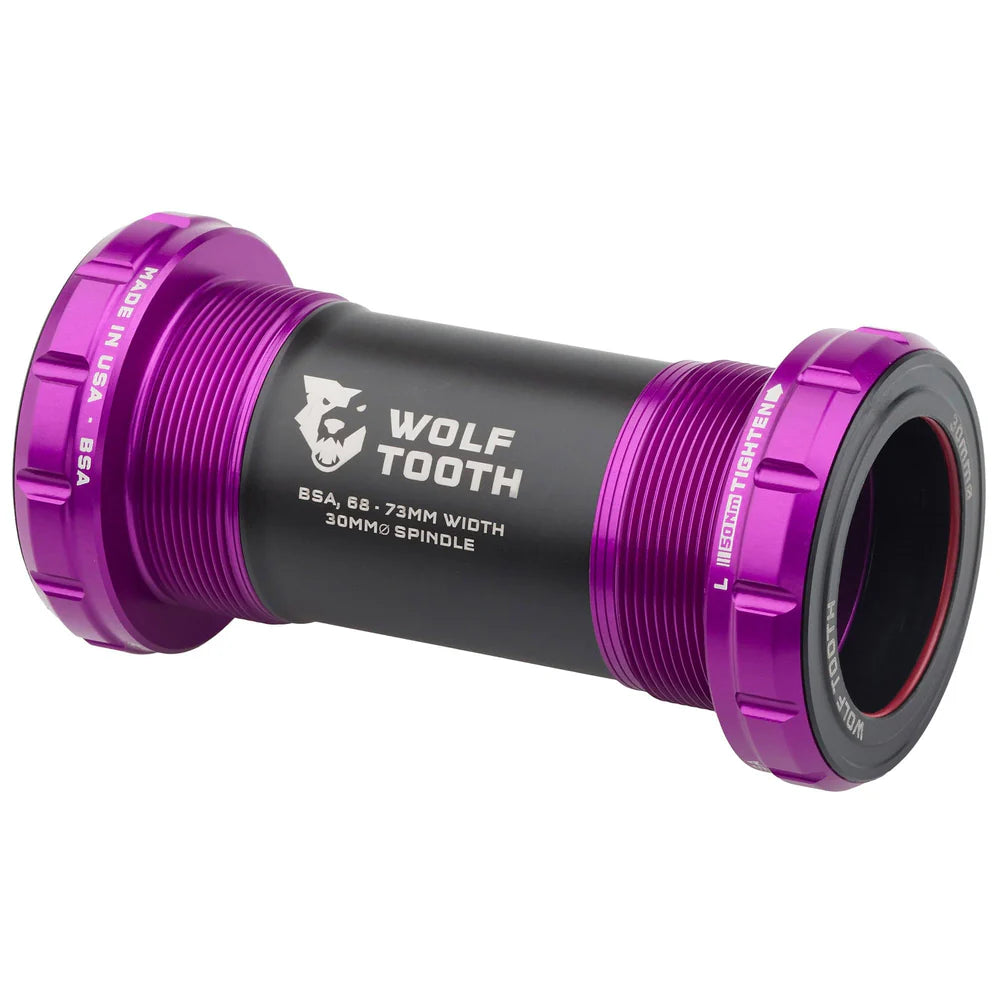

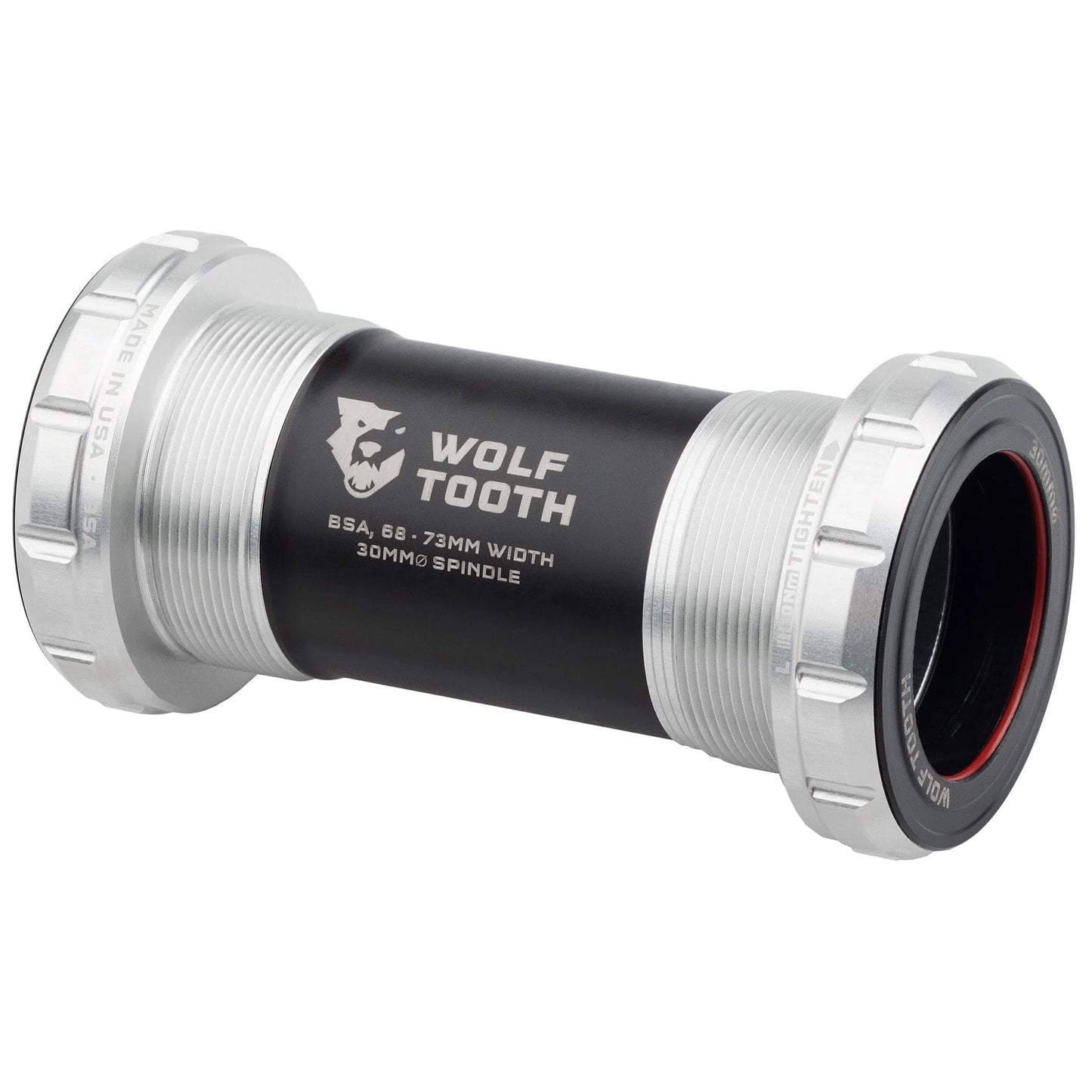

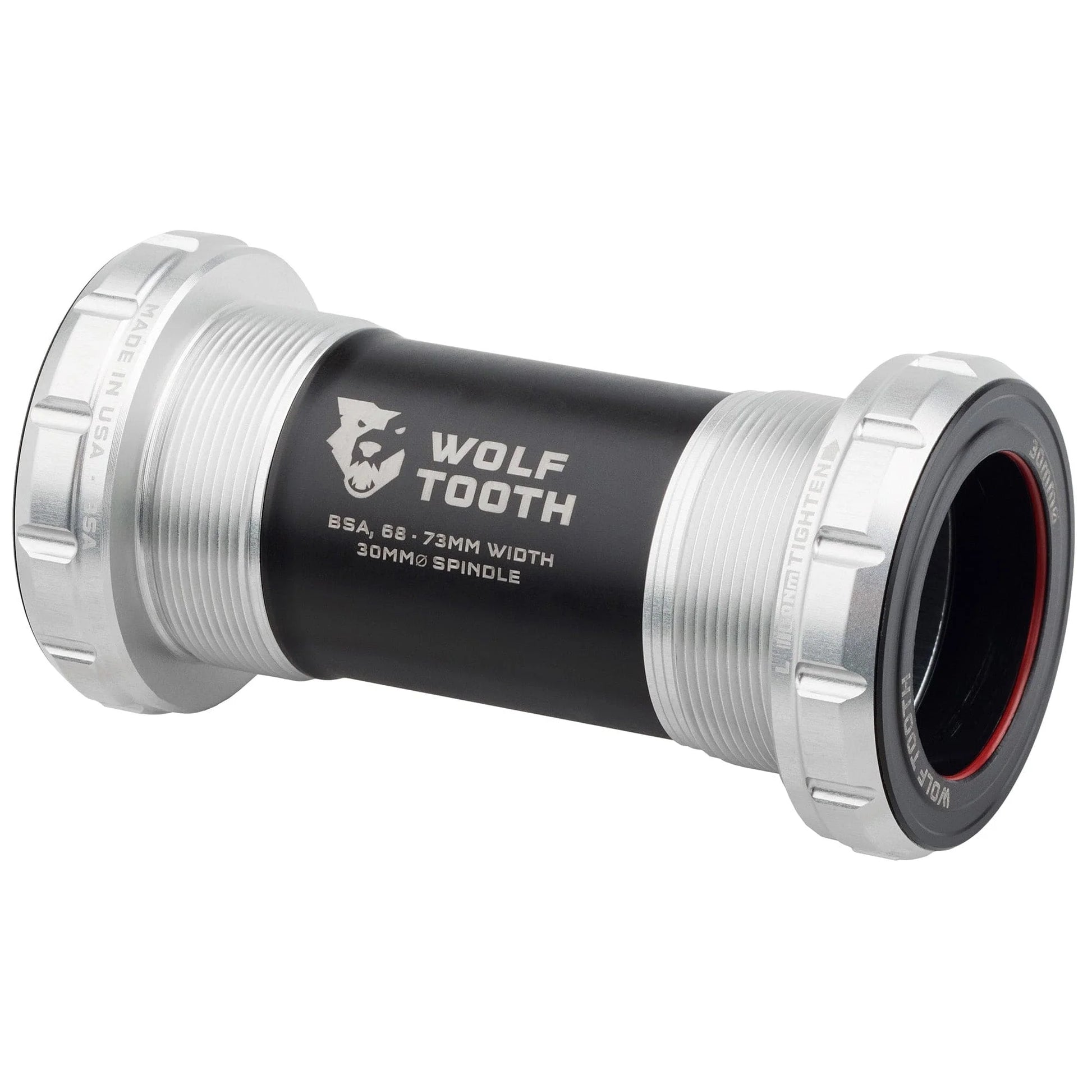

Wolf Tooth BSA 30mm Bottom Bracket
Wolf Tooth BSA 30mm Bottom Bracket
Couldn't load pickup availability
Wolf Tooth BSA Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 30mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm BSA bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 46-12 spline tool or BBS4612
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 3mm, 5mm, 7.5mm 29mm spindle spacers
Made in the USA
Wolf Tooth BSA Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and serviceable at home. Our ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
Wolf Tooth bottom brackets are machined at Wolf Tooth HQ in Minnesota, USA.
Thoughtfully engineered sealing is designed to balance low drag with superior performance in all conditions. The grouping of a spindle o-ring, seals on the bearing/bushing gutter, light inner and outer bearing race seals, shell o-rings, and a labyrinth-style end cap ensure your bottom bracket will spin smoothly no matter what conditions you ride in.
Custom bushings separate the bearing inner race and crank spindle to eliminate metal-on-metal contact, the leading cause of bottom bracket creaks. This bushing also helps enhance bearing longevity with an interface to the bearing gutter seal for maximum weatherproofing. No metal-on-metal contact, no creaks. It's simple.
Compatibility
- 68, 73, 83, and 100mm width BSA bottom bracket shells
- Included adjustable-width internal sleeve fits 68-73mm width BSA bottom bracket shells
- 83 and 100mm width internal sleeves are available for purchase as add-ons
Installation
- Installation and removal with standard 44-16 (24mm) and 46-12 (29mm DUB, 30mm) spline bottom bracket tools
